SCL # :222684-7735080444
Manufacturer Item # :SV060-1VTN-FLTPDD/2940-276-000002-7735080444

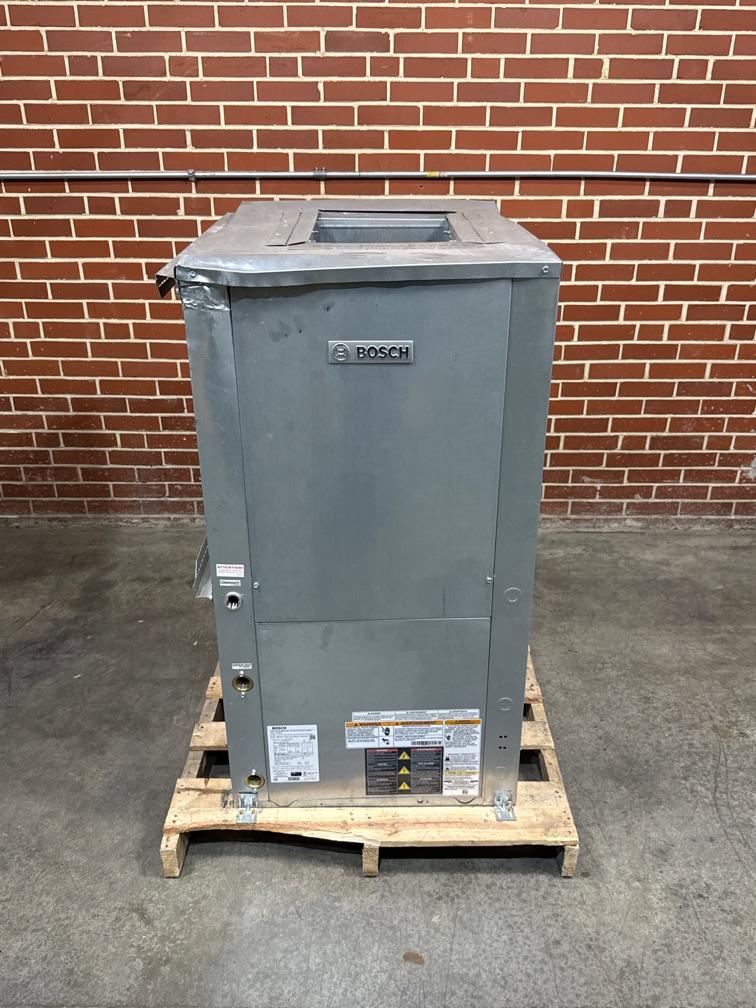

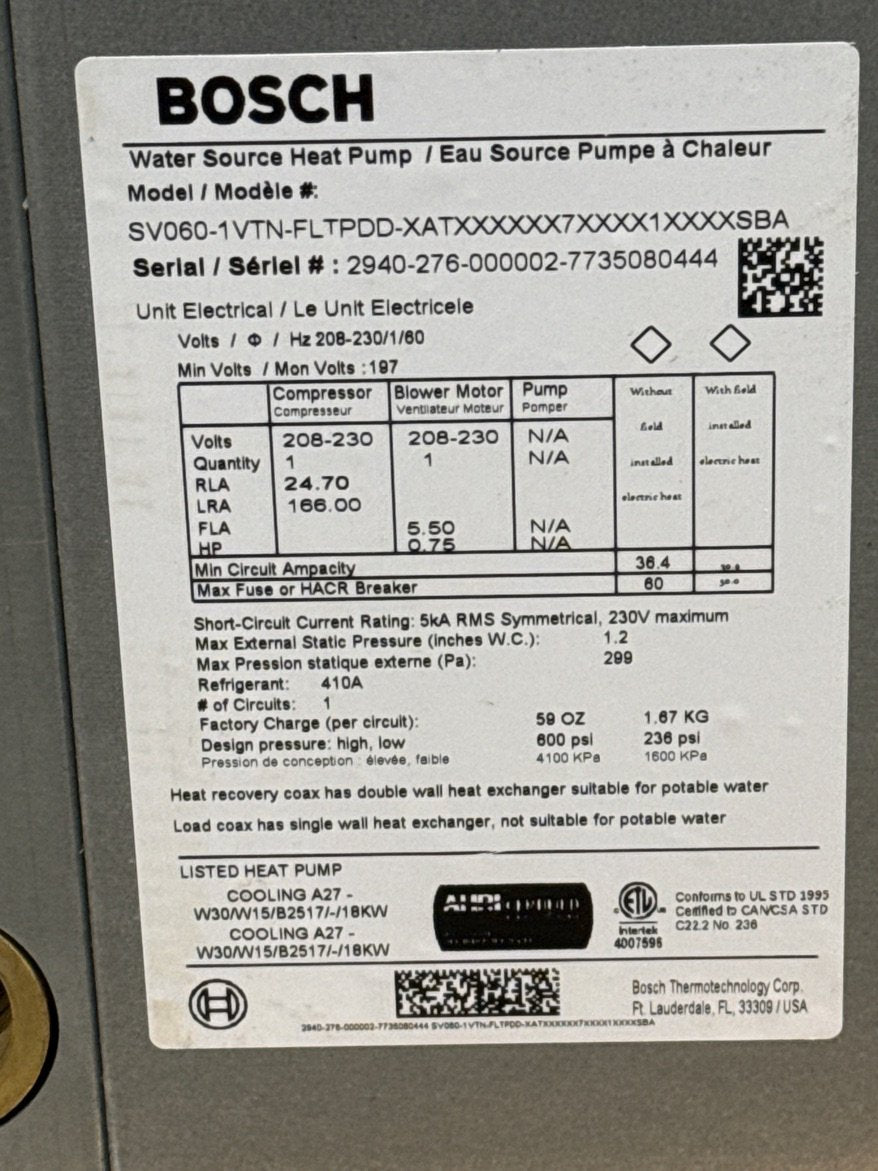

5 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 15.8, Stage: Single, Motor Type: PSC, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 59 oz, Water Loop - Cooling BTU: 59,100/Heating BTU: 77,800, Ground Loop - Cooling BTU: 61,600/Heating BTU: 53,400, Connection Size: 1", Dimensions: 45-1/4''H x 24''W x 32-1/4''D, Weight: 288 lbs

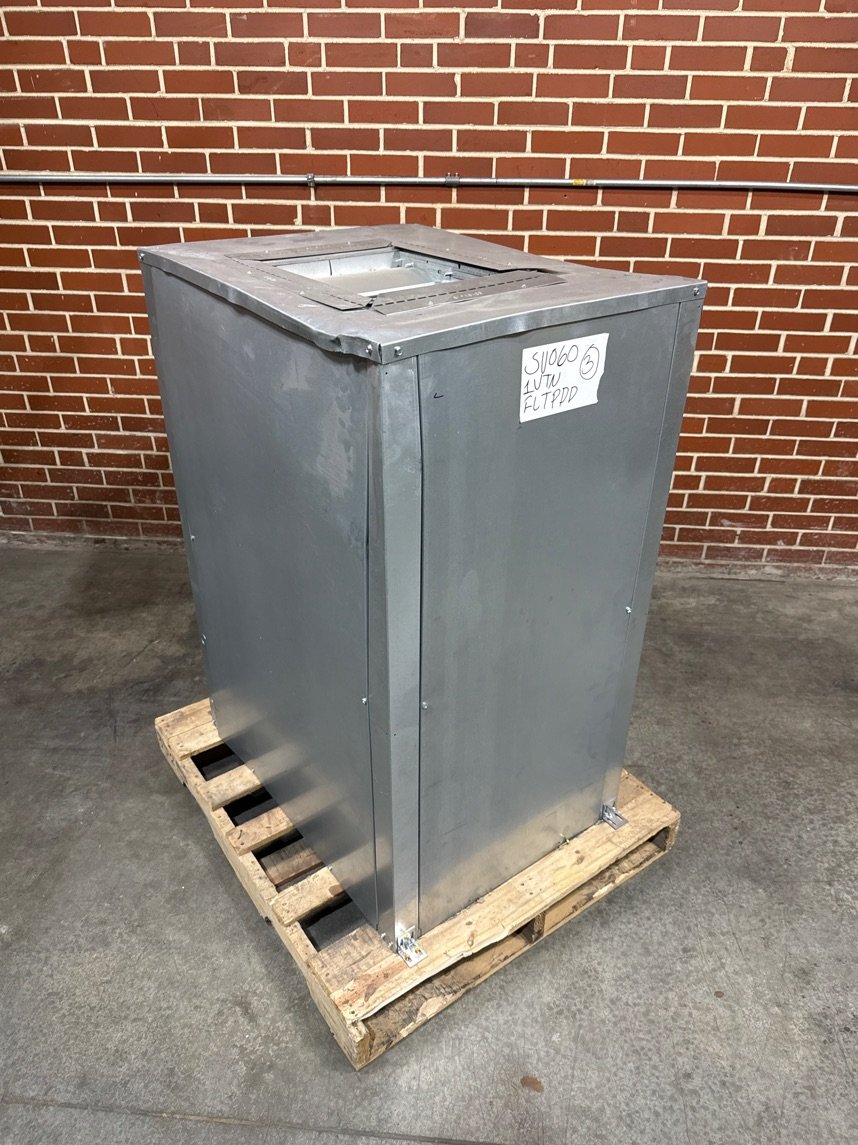

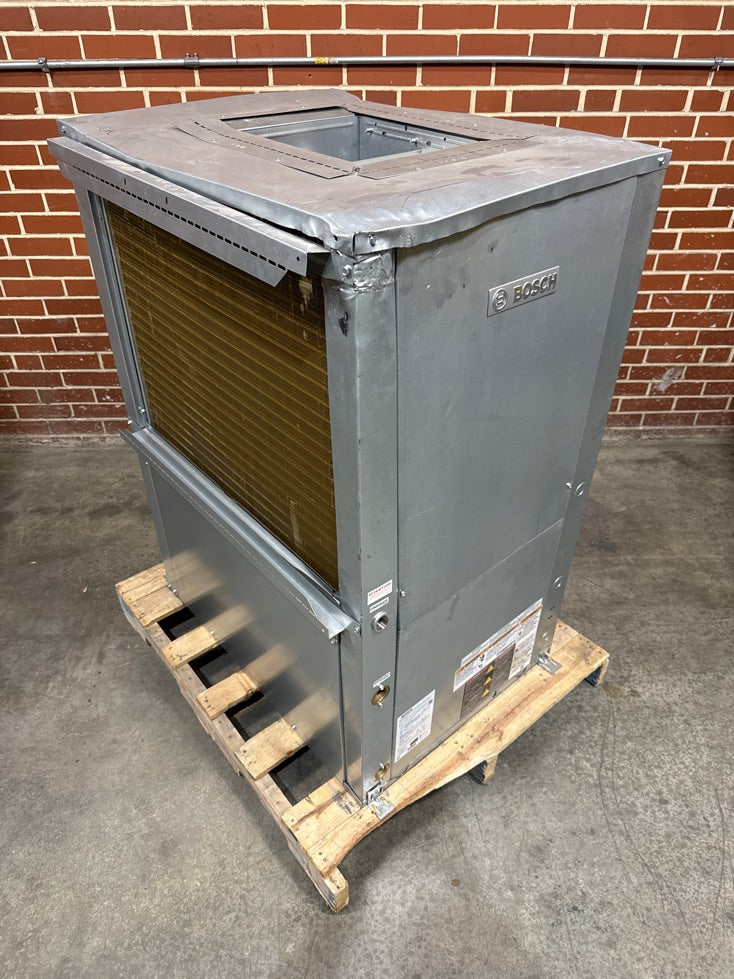

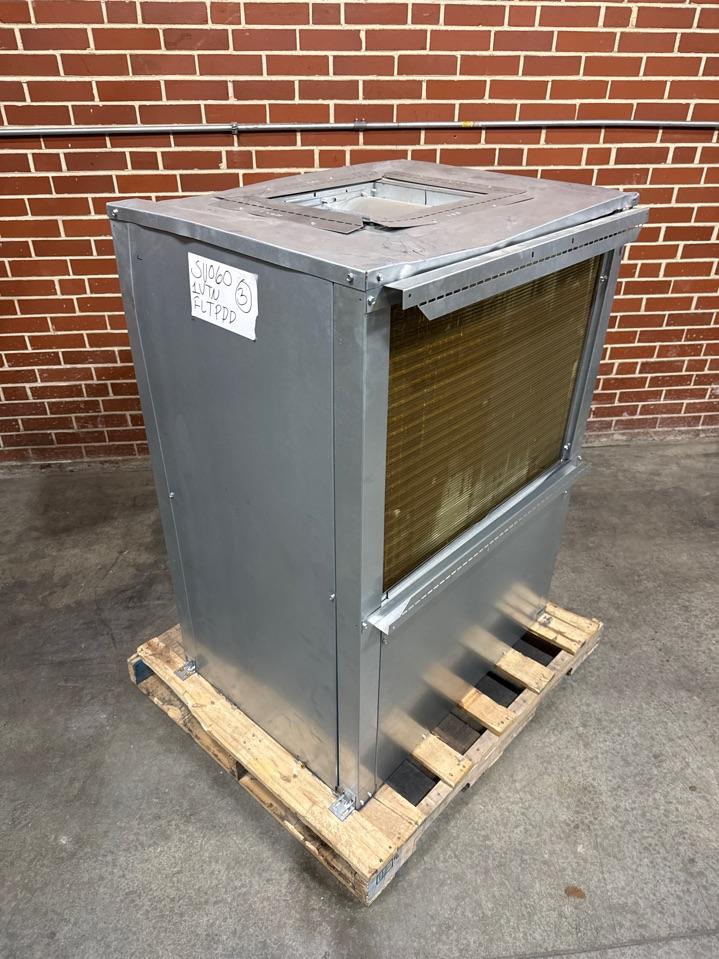

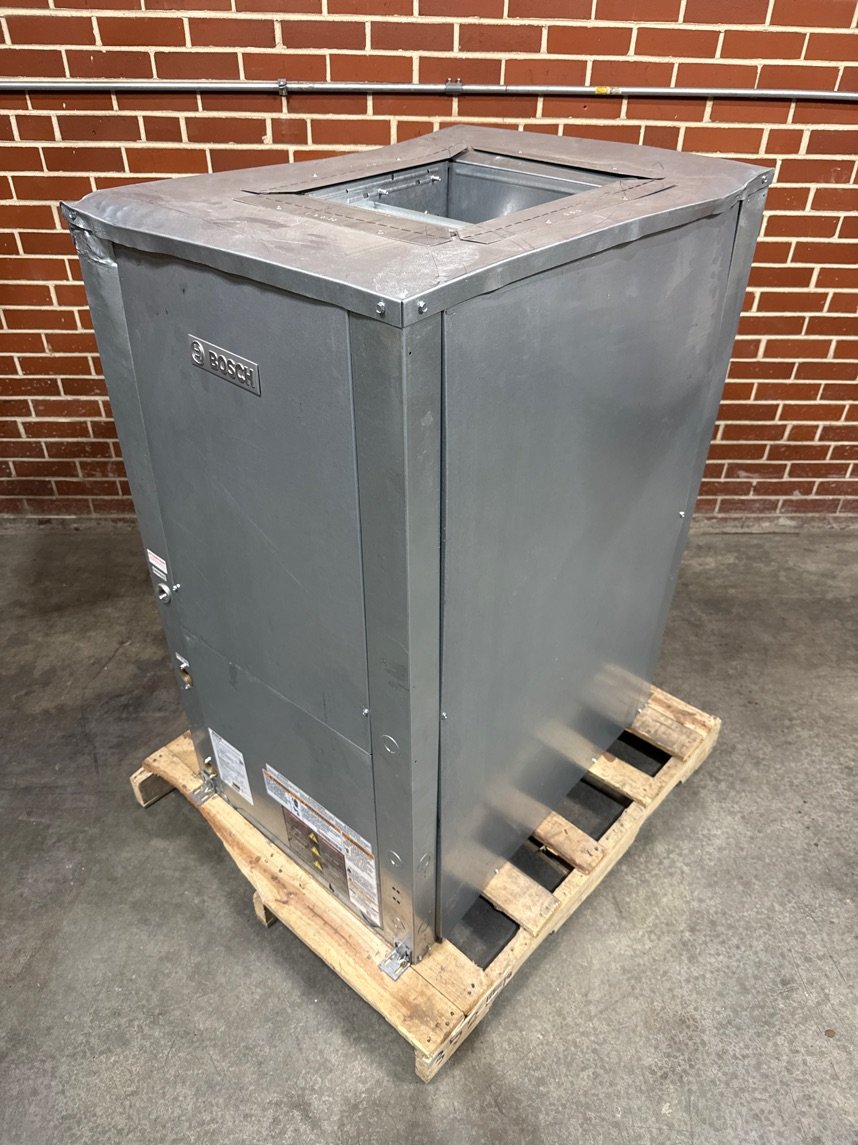

***Unit has significant damage front, side and top panel. Frame appears to be bent as well***
***Unit has significant damage front, side and top panel. Frame appears to be bent as well***
Product Details
Product Details
SCL # :222684-7735080444
Manufacturer Item # :SV060-1VTN-FLTPDD/2940-276-000002-7735080444
5 Ton Single Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration: Vertical, Return Air Option: Left Return, EER: 15.8, Stage: Single, Motor Type: PSC, Refrigerant: R410A, Metering Device: TXV, Factory Charge: 59 oz, Water Loop - Cooling BTU: 59,100/Heating BTU: 77,800, Ground Loop - Cooling BTU: 61,600/Heating BTU: 53,400, Connection Size: 1", Dimensions: 45-1/4''H x 24''W x 32-1/4''D, Weight: 288 lbs
***Unit has significant damage front, side and top panel. Frame appears to be bent as well***
***Unit has significant damage front, side and top panel. Frame appears to be bent as well***
Specifications
Specifications
Cabinet Size:24
Capacity:5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:No Manufacture Packaging
