SCL # :219703
Manufacturer Item # :TE4B6021SA/TEM4B0C60S51SA
Alternate Part # :216466,219612

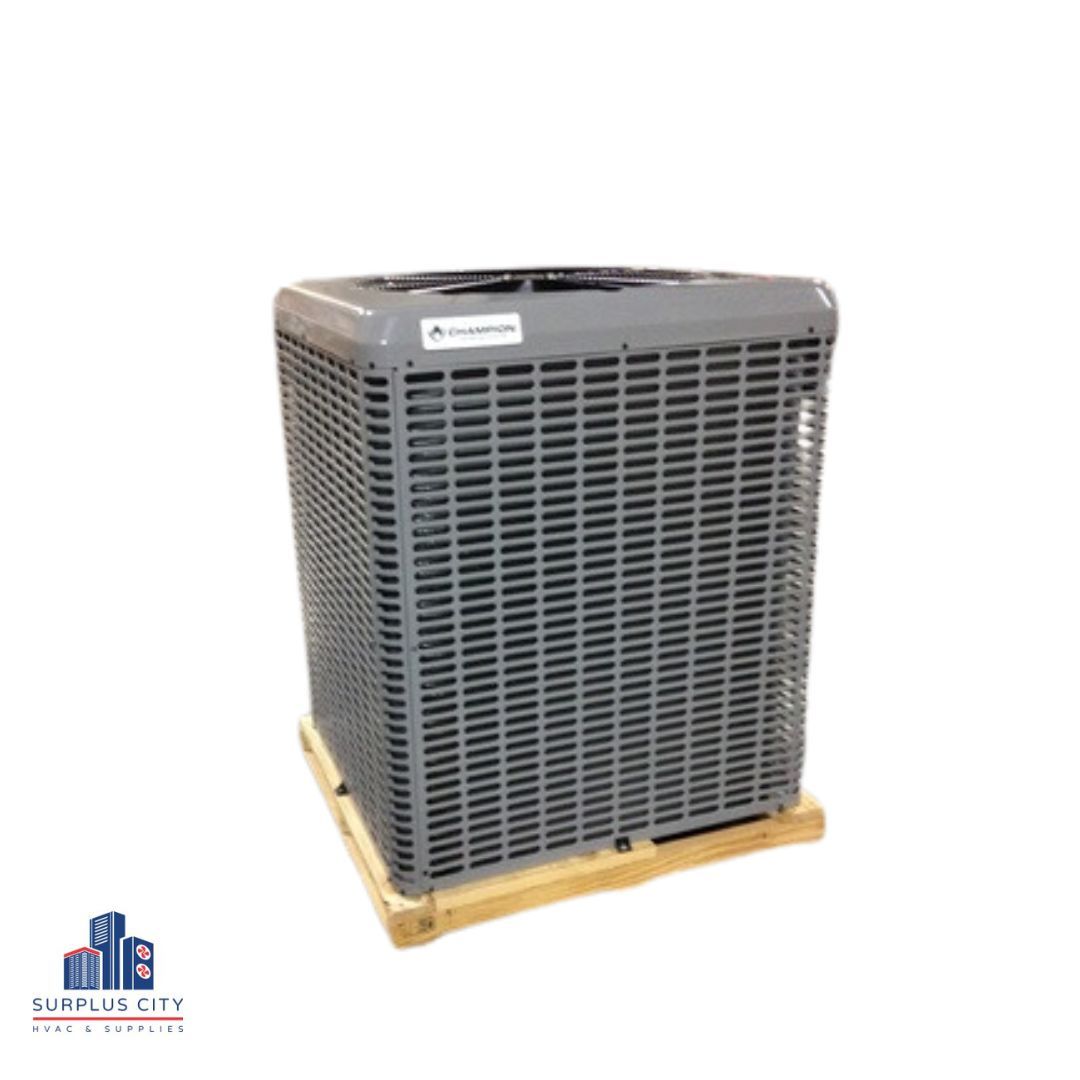

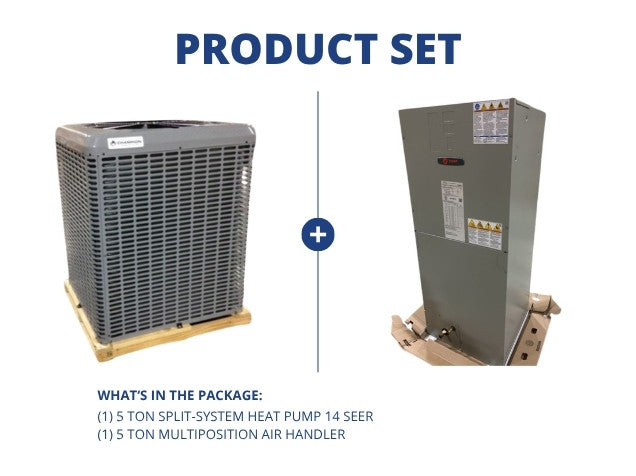

5 Ton 'LX' Series Non-Communicating Split-System Heat Pump, Volts: 208-230, Hertz: 60, Phase: 1, SEER: 14, EER: 12, Stage: Single, Refrigerant: R410A, Type:Air Source, Connection Size: 3/8" X 7/8" Sweat, Design Pressure High/Low:448 PSIG/236 PSIG, Factory Charge: 12 Lbs 1 Oz, Dimensions:
42-3/4''H X 38''W X 34-1/4''D, Weight: 249 Lbs, In Mfg Box, Made In USA.

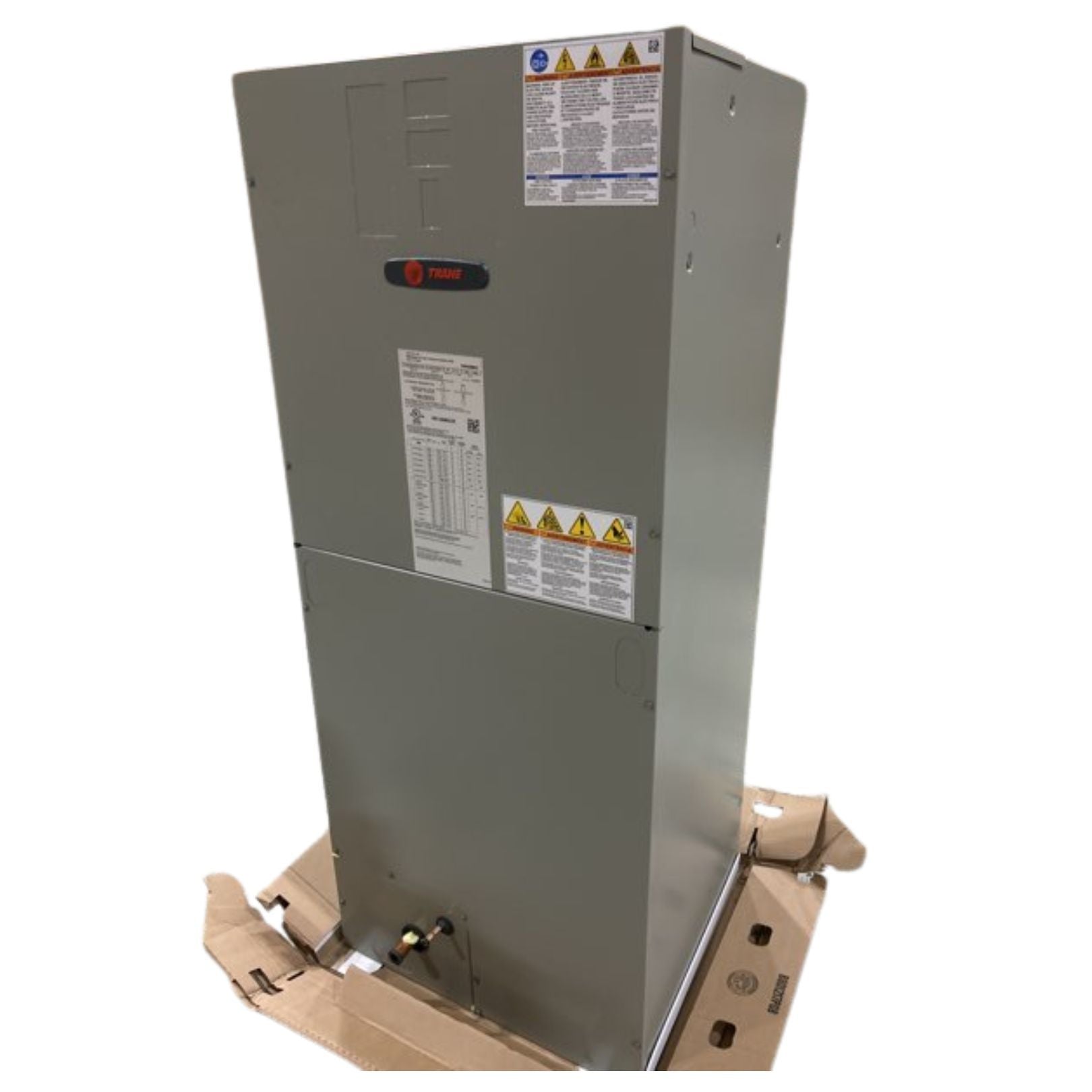

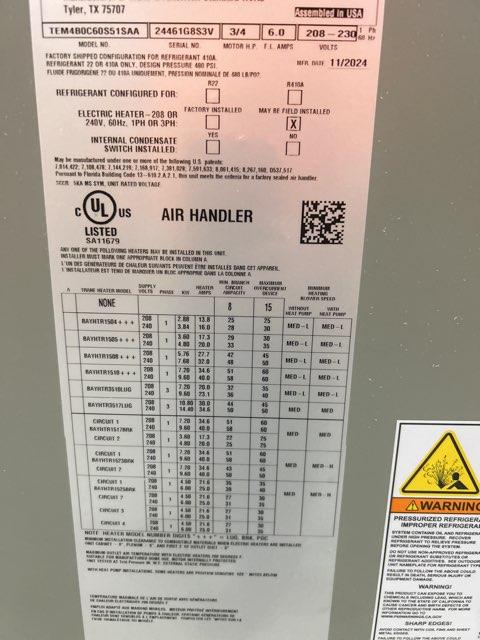

Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 2040, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 57-2/5''H X 23-1/2''W X 21-1/8''D, Weight: 174 lbs ***Compatible Heat Kits: BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, BAYHTR35(10-17)LUG (not included)***
42-3/4''H X 38''W X 34-1/4''D, Weight: 249 Lbs, In Mfg Box, Made In USA.
Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 2040, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 57-2/5''H X 23-1/2''W X 21-1/8''D, Weight: 174 lbs ***Compatible Heat Kits: BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, BAYHTR35(10-17)LUG (not included)***
Product Details
Product Details
SCL # :219703
Manufacturer Item # :TE4B6021SA/TEM4B0C60S51SA
Alternate Part # :216466,219612
5 Ton 'LX' Series Non-Communicating Split-System Heat Pump, Volts: 208-230, Hertz: 60, Phase: 1, SEER: 14, EER: 12, Stage: Single, Refrigerant: R410A, Type:Air Source, Connection Size: 3/8" X 7/8" Sweat, Design Pressure High/Low:448 PSIG/236 PSIG, Factory Charge: 12 Lbs 1 Oz, Dimensions:
42-3/4''H X 38''W X 34-1/4''D, Weight: 249 Lbs, In Mfg Box, Made In USA.
Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 2040, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 57-2/5''H X 23-1/2''W X 21-1/8''D, Weight: 174 lbs ***Compatible Heat Kits: BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, BAYHTR35(10-17)LUG (not included)***
42-3/4''H X 38''W X 34-1/4''D, Weight: 249 Lbs, In Mfg Box, Made In USA.
Paired with 5 Ton AC/HP Air Handler, Airflow: Multiposition, Volts: 208-230, Hertz: 60, Phase: 1, CFM: 2040, Refrigerant: R-410A, Motor Type: ECM, Metering Device: TXV, Connection Size: Suction-7/8" Liquid-3/8", Type: Air Source, Dimensions: 57-2/5''H X 23-1/2''W X 21-1/8''D, Weight: 174 lbs ***Compatible Heat Kits: BAYHTR15(04-25)BRK, BAYHTR15(04-10)LUG, BAYHTR35(10-17)LUG (not included)***
Specifications
Specifications
Cabinet Size:38
Capacity:5
Circuit Phase:1
Circuit Voltage:208-230
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
