SCL # :M000376
Manufacturer Item # :MGH96M060B3B/YHE30B21SA
Alternate Part # :220056,195097

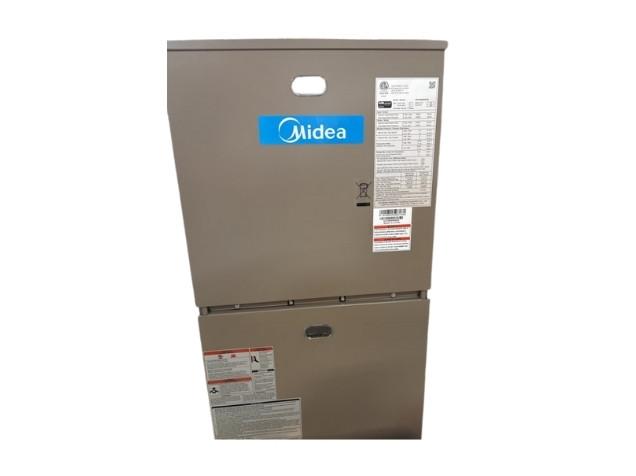

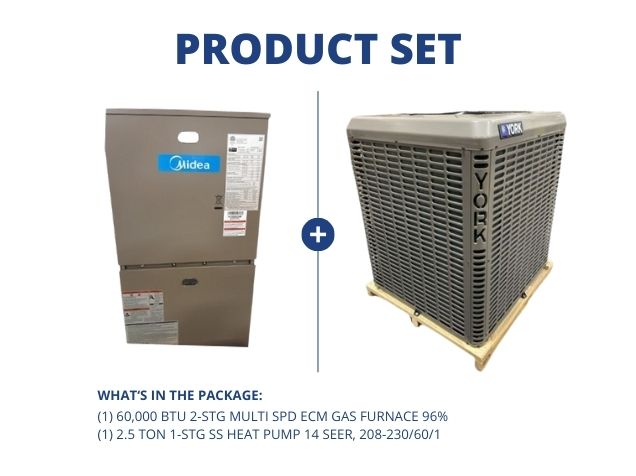

60,000 BTU Multiposition Gas Furnace, Efficiency: 96%, Volts: 115, Hertz: 60, Phase: 1, CFM: 1430, Stage: Two, Speed: Multi, Motor Type: ECM, BTU Input: 60,000, BTU Output: 57,000, Dimensions:
33-3/4''H X 17-1/2''W X 28-3/4''D, Weight: 135 lbs ***Propane Conversion Kit: EAC15527600000005 (Not Included)*** Paired with:

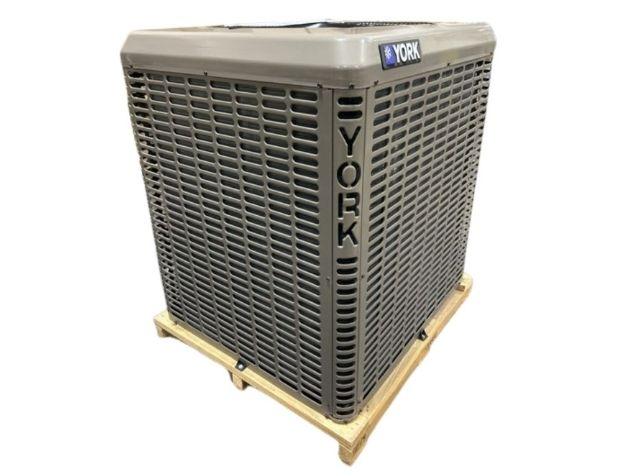

2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA
33-3/4''H X 17-1/2''W X 28-3/4''D, Weight: 135 lbs ***Propane Conversion Kit: EAC15527600000005 (Not Included)*** Paired with:
2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA
Product Details
Product Details
SCL # :M000376
Manufacturer Item # :MGH96M060B3B/YHE30B21SA
Alternate Part # :220056,195097
60,000 BTU Multiposition Gas Furnace, Efficiency: 96%, Volts: 115, Hertz: 60, Phase: 1, CFM: 1430, Stage: Two, Speed: Multi, Motor Type: ECM, BTU Input: 60,000, BTU Output: 57,000, Dimensions:
33-3/4''H X 17-1/2''W X 28-3/4''D, Weight: 135 lbs ***Propane Conversion Kit: EAC15527600000005 (Not Included)*** Paired with:
2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA
33-3/4''H X 17-1/2''W X 28-3/4''D, Weight: 135 lbs ***Propane Conversion Kit: EAC15527600000005 (Not Included)*** Paired with:
2.5 ton LX series split-system heat pump; Volts: 208/230, Hertz: 60, Phase: 1, SEER: 14, Stage: single, Refrigerant: R-410A, Factory Charge: 7 lbs 15 oz, Connections: 3/8" x 3/4" sweat, Design Pressure High/Low: 448 PSIG/236 PSIG, Dimensions: 39-1/2"H x 31-3/4"W x 35-1/4"D, Weight: 175 lbs, in bulk, made in USA
Specifications
Specifications
Cabinet Size:17.5
Efficiency:95+%
Packaging:Manufacture packaging
Stage:2
System Controls:NON-COMMUNICATING
Type:GAS/PROPANE
