SCL # :M000385
Manufacturer Item # :GUH80C070B3M/GSXN403010
Alternate Part # :215215,215705

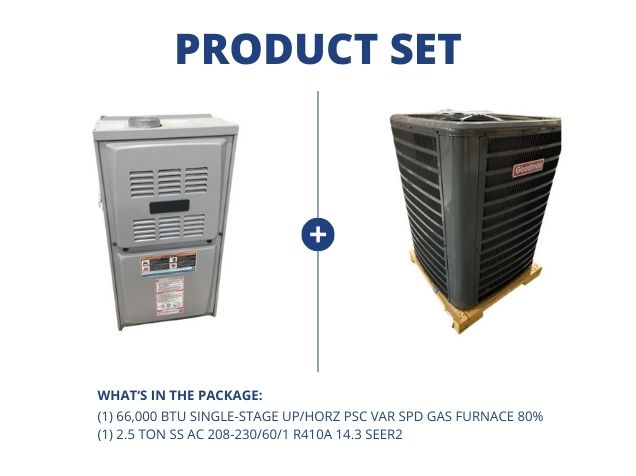

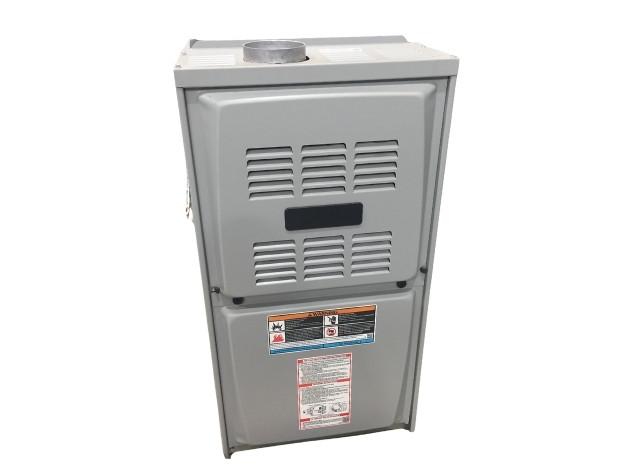

66,000 BTU Upflow/Horizontal Gas Furnace, Efficiency: 80, Volts: 120, Hertz: 60, Phase: 1, Cfm:
1355, Stage: Single, Speed: Variable, Motor Type: Psc, BTU Input: 66,000, BTU Output: 52,800, Dimensions: 33"H X 17-1/2"W X 28-3/8"D, Weight: 127 Lbs, Plenum Opening Dimensions: 19-1/2" X 16-3/8", Mfg Box, Made In Mexico Propane Conversion Kit: 11K50, 11K45 (Not Included) No MFG Badge Paired with:

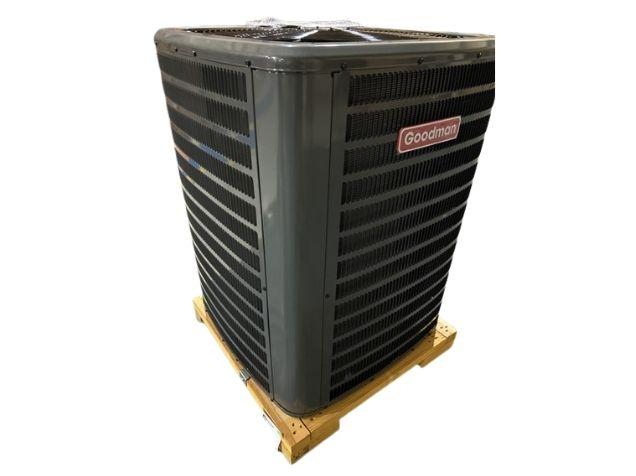

2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
1355, Stage: Single, Speed: Variable, Motor Type: Psc, BTU Input: 66,000, BTU Output: 52,800, Dimensions: 33"H X 17-1/2"W X 28-3/8"D, Weight: 127 Lbs, Plenum Opening Dimensions: 19-1/2" X 16-3/8", Mfg Box, Made In Mexico Propane Conversion Kit: 11K50, 11K45 (Not Included) No MFG Badge Paired with:
2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
Product Details
Product Details
SCL # :M000385
Manufacturer Item # :GUH80C070B3M/GSXN403010
Alternate Part # :215215,215705
66,000 BTU Upflow/Horizontal Gas Furnace, Efficiency: 80, Volts: 120, Hertz: 60, Phase: 1, Cfm:
1355, Stage: Single, Speed: Variable, Motor Type: Psc, BTU Input: 66,000, BTU Output: 52,800, Dimensions: 33"H X 17-1/2"W X 28-3/8"D, Weight: 127 Lbs, Plenum Opening Dimensions: 19-1/2" X 16-3/8", Mfg Box, Made In Mexico Propane Conversion Kit: 11K50, 11K45 (Not Included) No MFG Badge Paired with:
2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
1355, Stage: Single, Speed: Variable, Motor Type: Psc, BTU Input: 66,000, BTU Output: 52,800, Dimensions: 33"H X 17-1/2"W X 28-3/8"D, Weight: 127 Lbs, Plenum Opening Dimensions: 19-1/2" X 16-3/8", Mfg Box, Made In Mexico Propane Conversion Kit: 11K50, 11K45 (Not Included) No MFG Badge Paired with:
2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details***
Specifications
Specifications
Cabinet Size:17.5

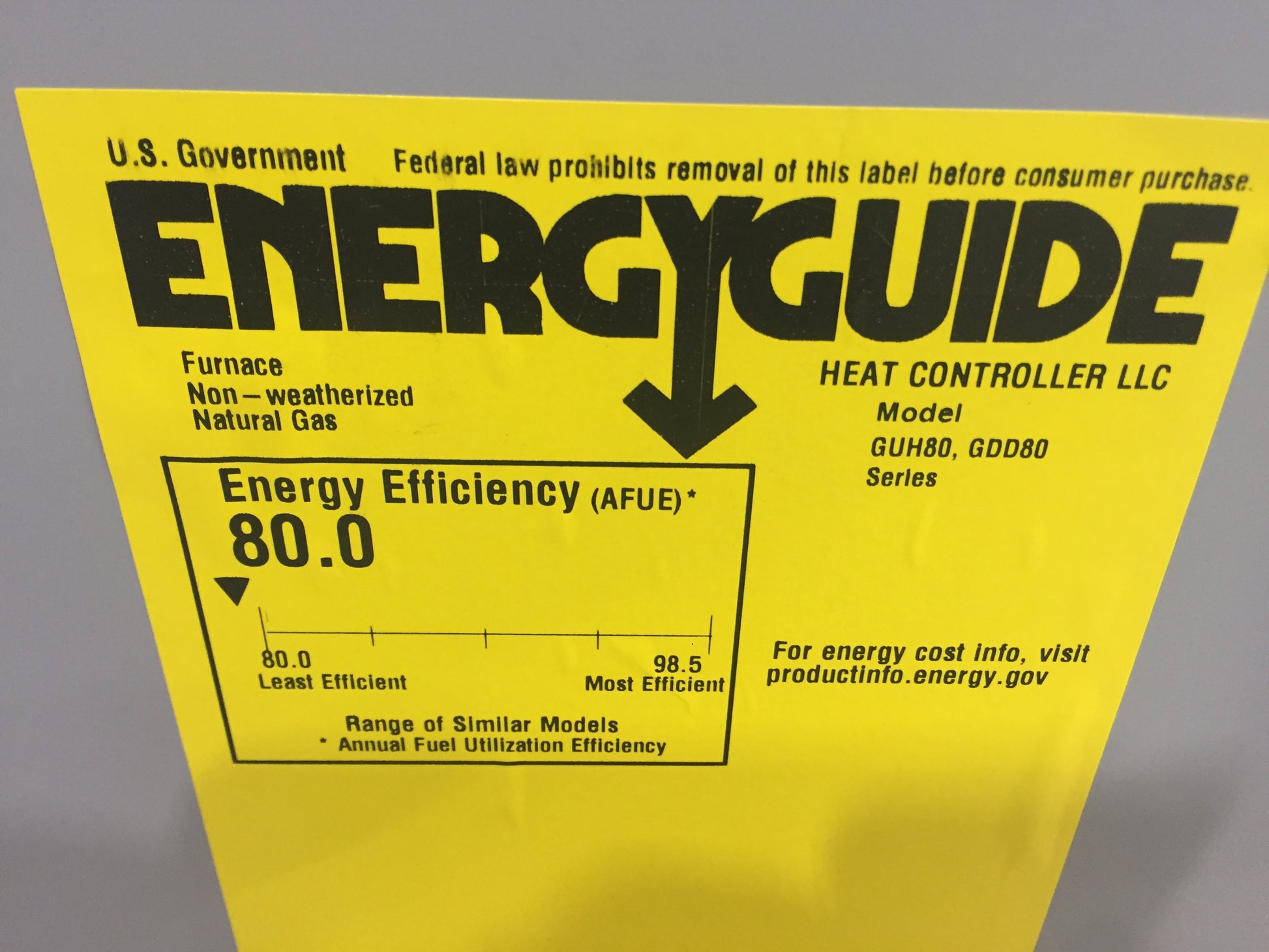

Efficiency:80%
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
Type:GAS/PROPANE
