SCL # :220963
Manufacturer Item # :DRG0903DH00001S
Alternate Part # :DRG0903DH00001SAB

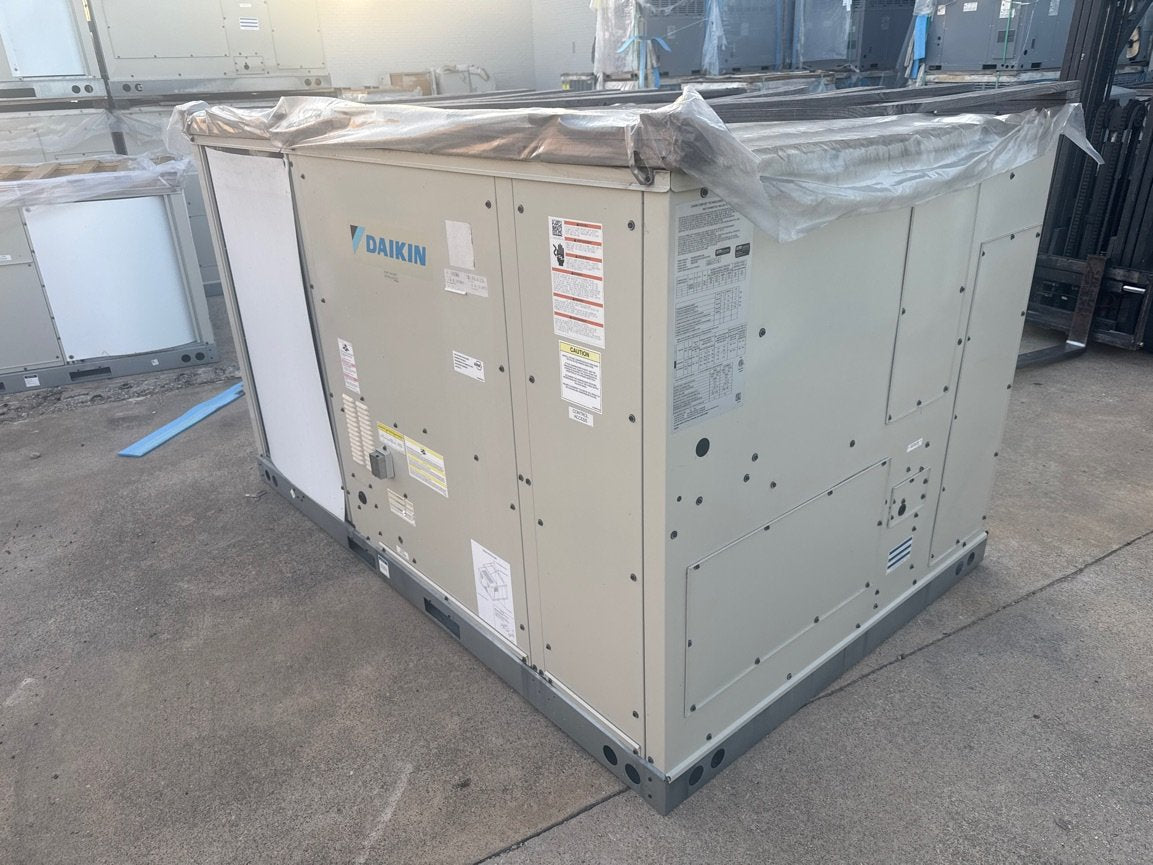

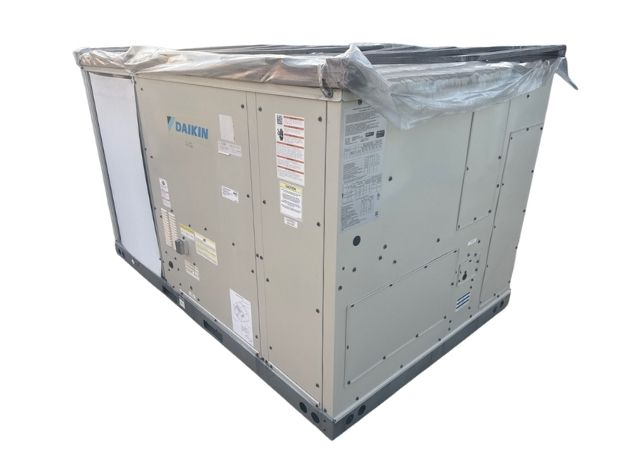

7.5 Ton Two Stage Convertible Natural Gas/Electric Packaged Unit, Volts: 208-230, Hertz: 60, Phase:
3, Refrigerant: R410A, Factory Charge: 133/133 oz Dual Circuit, EER: 12.2, CFM: 3724, BTU Input:
225,000, BTU Output: 182,250, Cooling BTU: 90,000, Heating BTU: 225,000, Overall Dims: 54-9/20''H X 93-3/4''W X 60-3/8''D, Weight: 1181 lbs

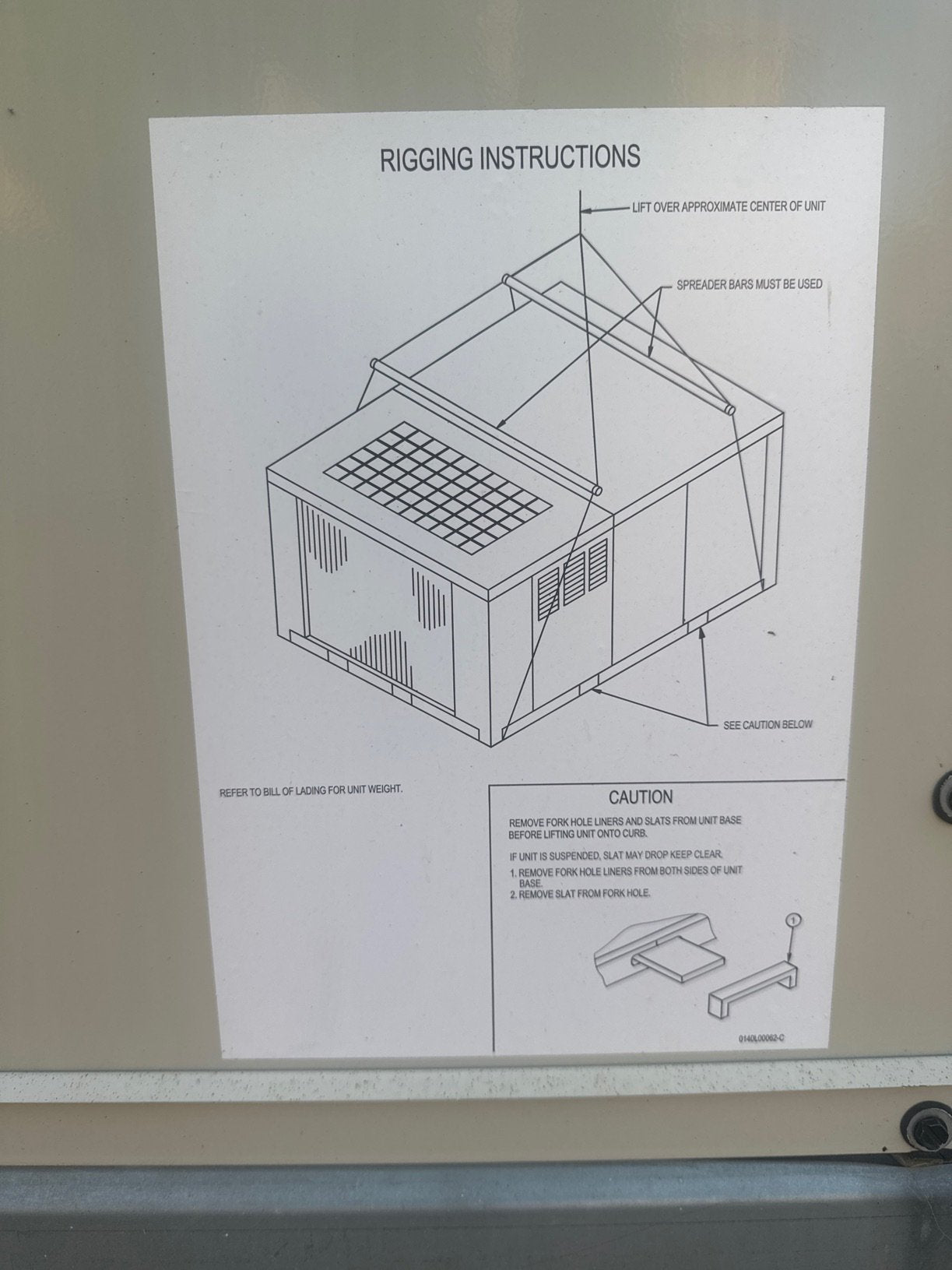

Ships By Flatbed, You will need a forklift or crane to unload the delivery
3, Refrigerant: R410A, Factory Charge: 133/133 oz Dual Circuit, EER: 12.2, CFM: 3724, BTU Input:
225,000, BTU Output: 182,250, Cooling BTU: 90,000, Heating BTU: 225,000, Overall Dims: 54-9/20''H X 93-3/4''W X 60-3/8''D, Weight: 1181 lbs
Ships By Flatbed, You will need a forklift or crane to unload the delivery
Product Details
Product Details
SCL # :220963
Manufacturer Item # :DRG0903DH00001S
Alternate Part # :DRG0903DH00001SAB
7.5 Ton Two Stage Convertible Natural Gas/Electric Packaged Unit, Volts: 208-230, Hertz: 60, Phase:
3, Refrigerant: R410A, Factory Charge: 133/133 oz Dual Circuit, EER: 12.2, CFM: 3724, BTU Input:
225,000, BTU Output: 182,250, Cooling BTU: 90,000, Heating BTU: 225,000, Overall Dims: 54-9/20''H X 93-3/4''W X 60-3/8''D, Weight: 1181 lbs
Ships By Flatbed, You will need a forklift or crane to unload the delivery
3, Refrigerant: R410A, Factory Charge: 133/133 oz Dual Circuit, EER: 12.2, CFM: 3724, BTU Input:
225,000, BTU Output: 182,250, Cooling BTU: 90,000, Heating BTU: 225,000, Overall Dims: 54-9/20''H X 93-3/4''W X 60-3/8''D, Weight: 1181 lbs
Ships By Flatbed, You will need a forklift or crane to unload the delivery
Specifications
Specifications
Application:PACKAGED GAS/ELEC UNIT
Cabinet Size:93.75
Capacity:7.5
Circuit Phase:3
Circuit Voltage:208-230
Maximum Hertz:60
Stage:2
