SCL # :M001269
Manufacturer Item # :FF75214TS80M/CE36A36-210L-142/T621-2
Alternate Part # :217589,219543,222444

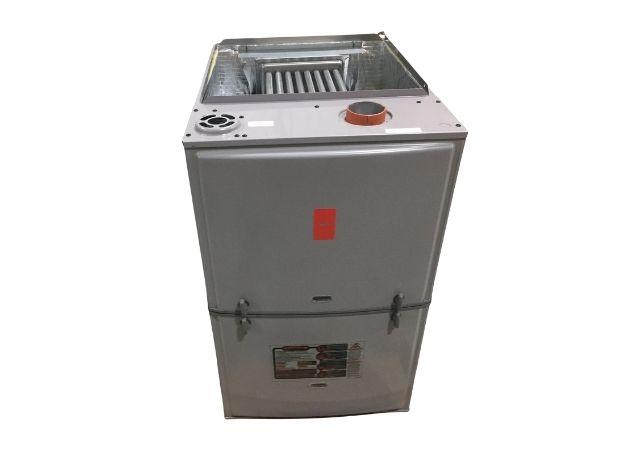

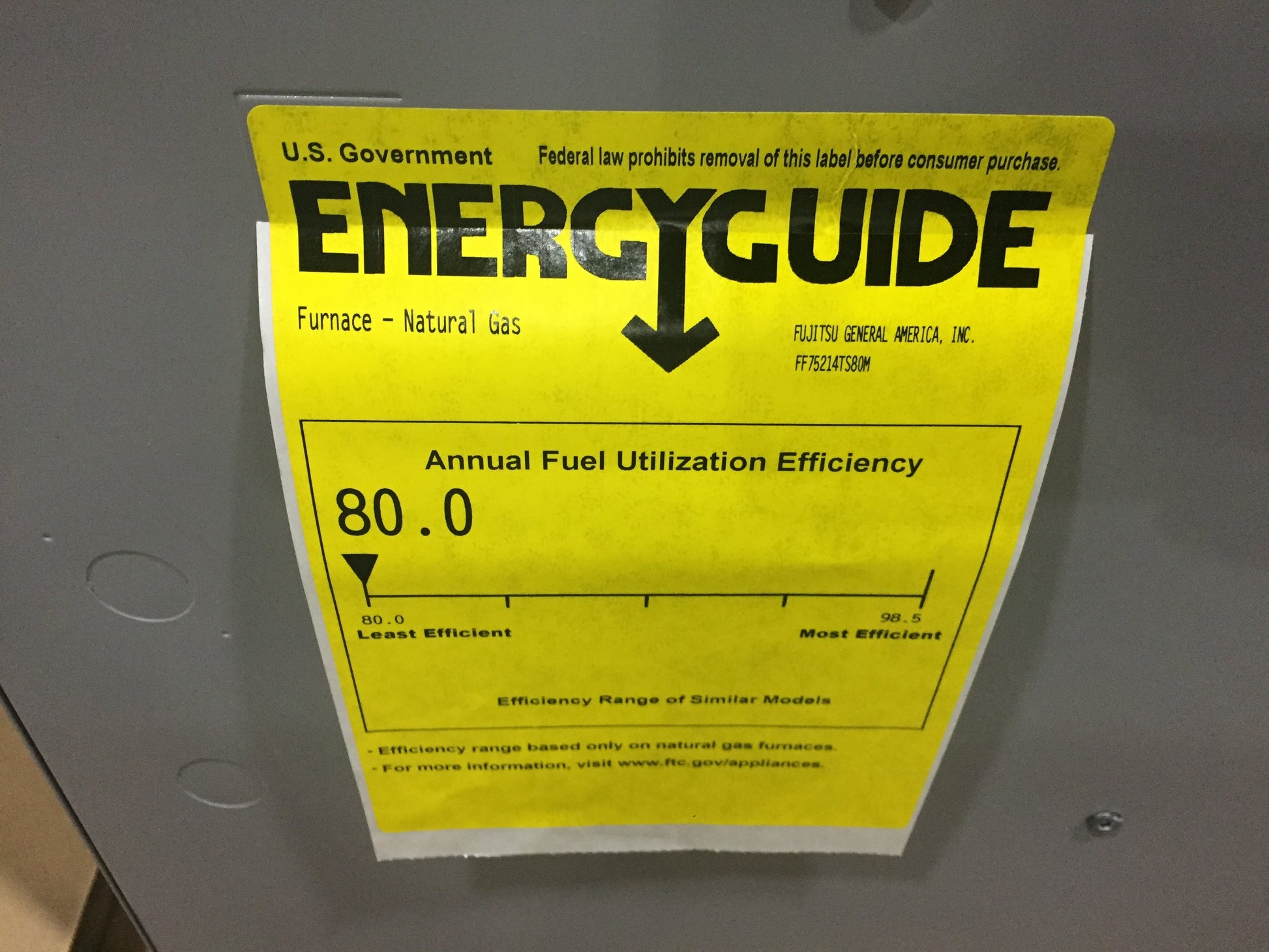

75,000 BTU Upflow/Horizontal Gas Furnace, Efficiency: 80, Volts: 115, Hertz: 60, Phase: 1, CFM: 1608, Stage: Single, Speed: Multi, Motor Type: ECM, BTU Input: 75000, BTU Output: 60,000, Dimensions: 34"H X 21"W X 29-19/32"D. **Propane Conversion Kit: RXGJ-FP15 Not Included** **Unit includes a Manufacture Warranty through June of 2029, No Registration Required** Paired with:

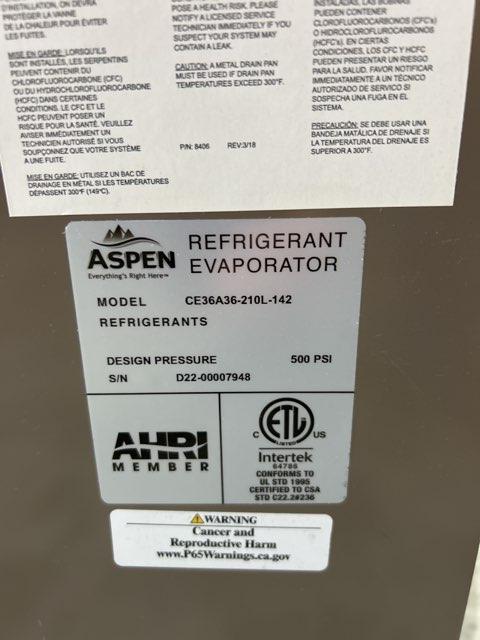

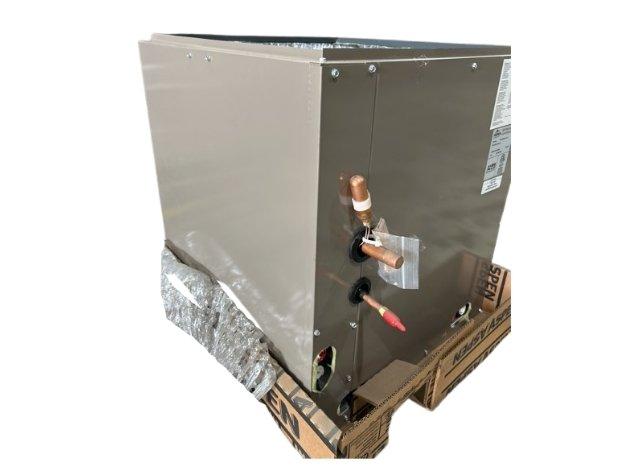

3 ton cased 'A' coil, Airflow: multiposition, CFM: 1200, Metering Device: TXV, Connection Type: sweat, Refrigerant: R410A, Connection Size: 3/8" x 3/4", Drain Pan: plastic, Dimensions: 23"H x 21"W x 21-1/2"D, Weight: 52 lbs Paired with:

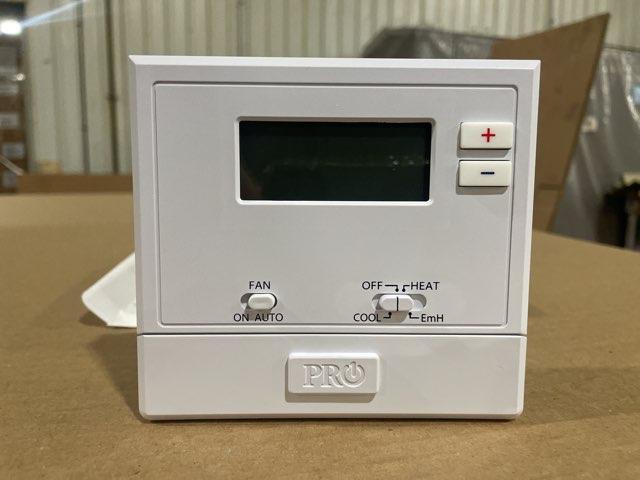

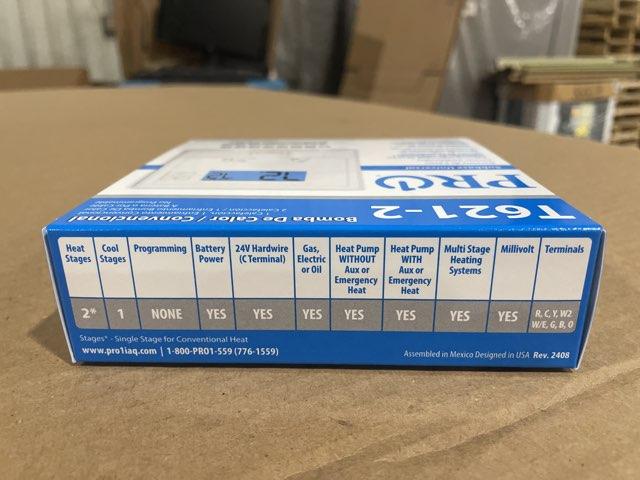

Non-Programmable Push Button Wall Mount or Junction Box Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 44F to 90F, Power: Hardwired or Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Air Handlers, Furnaces, Features: Adjustable Heating & Cooling Temperature Swing, Wall Mount or Junction Box, Dimensions: 4-2/5''H x 4-7/10''W x 1-1/10''D, Weight: 0.69 lbs **Optional Universal Wall Plate: T119, Not Included**
3 ton cased 'A' coil, Airflow: multiposition, CFM: 1200, Metering Device: TXV, Connection Type: sweat, Refrigerant: R410A, Connection Size: 3/8" x 3/4", Drain Pan: plastic, Dimensions: 23"H x 21"W x 21-1/2"D, Weight: 52 lbs Paired with:
Non-Programmable Push Button Wall Mount or Junction Box Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 44F to 90F, Power: Hardwired or Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Air Handlers, Furnaces, Features: Adjustable Heating & Cooling Temperature Swing, Wall Mount or Junction Box, Dimensions: 4-2/5''H x 4-7/10''W x 1-1/10''D, Weight: 0.69 lbs **Optional Universal Wall Plate: T119, Not Included**
Product Details
Product Details
SCL # :M001269
Manufacturer Item # :FF75214TS80M/CE36A36-210L-142/T621-2
Alternate Part # :217589,219543,222444
75,000 BTU Upflow/Horizontal Gas Furnace, Efficiency: 80, Volts: 115, Hertz: 60, Phase: 1, CFM: 1608, Stage: Single, Speed: Multi, Motor Type: ECM, BTU Input: 75000, BTU Output: 60,000, Dimensions: 34"H X 21"W X 29-19/32"D. **Propane Conversion Kit: RXGJ-FP15 Not Included** **Unit includes a Manufacture Warranty through June of 2029, No Registration Required** Paired with:
3 ton cased 'A' coil, Airflow: multiposition, CFM: 1200, Metering Device: TXV, Connection Type: sweat, Refrigerant: R410A, Connection Size: 3/8" x 3/4", Drain Pan: plastic, Dimensions: 23"H x 21"W x 21-1/2"D, Weight: 52 lbs Paired with:
Non-Programmable Push Button Wall Mount or Junction Box Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 44F to 90F, Power: Hardwired or Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Air Handlers, Furnaces, Features: Adjustable Heating & Cooling Temperature Swing, Wall Mount or Junction Box, Dimensions: 4-2/5''H x 4-7/10''W x 1-1/10''D, Weight: 0.69 lbs **Optional Universal Wall Plate: T119, Not Included**
3 ton cased 'A' coil, Airflow: multiposition, CFM: 1200, Metering Device: TXV, Connection Type: sweat, Refrigerant: R410A, Connection Size: 3/8" x 3/4", Drain Pan: plastic, Dimensions: 23"H x 21"W x 21-1/2"D, Weight: 52 lbs Paired with:
Non-Programmable Push Button Wall Mount or Junction Box Thermostat, 1-Heat/1-Cool Conventional, 2-Heat/1-Cool Heat Pump, Temperature Range: 44F to 90F, Power: Hardwired or Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Air Handlers, Furnaces, Features: Adjustable Heating & Cooling Temperature Swing, Wall Mount or Junction Box, Dimensions: 4-2/5''H x 4-7/10''W x 1-1/10''D, Weight: 0.69 lbs **Optional Universal Wall Plate: T119, Not Included**
Specifications
Specifications
Cabinet Size:21
Efficiency:80%
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
Type:GAS/PROPANE
