SCL # :M001253
Manufacturer Item # :FF75214CS80M/GSXN403010/CC36A3G-210L-025/2030
Alternate Part # :217893,215705,216472,222499

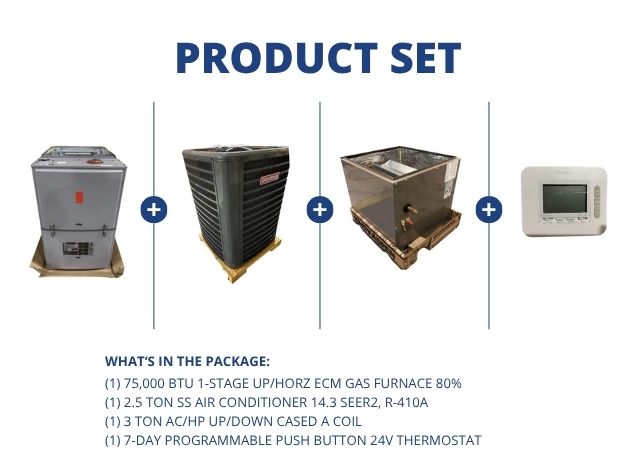

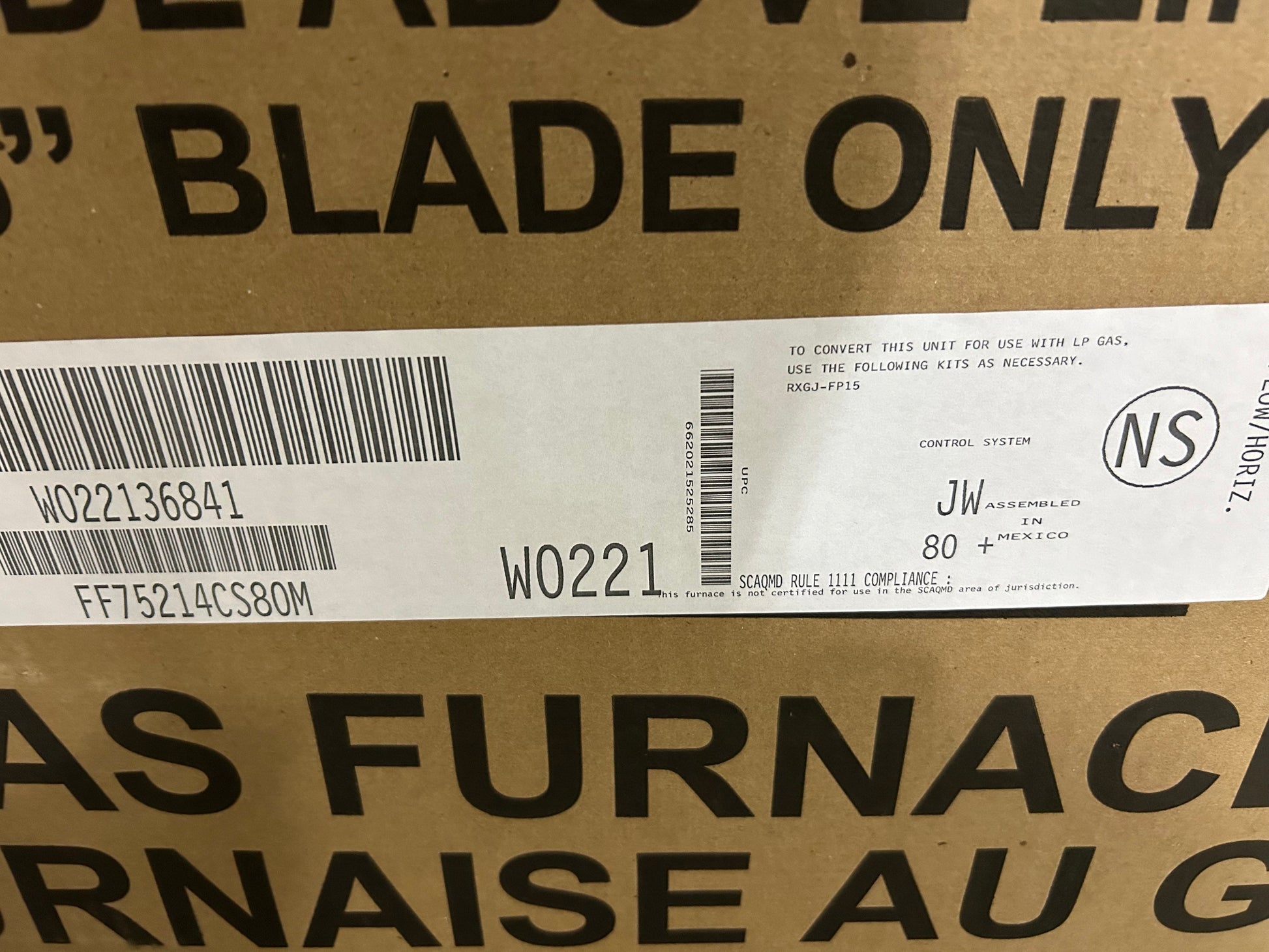

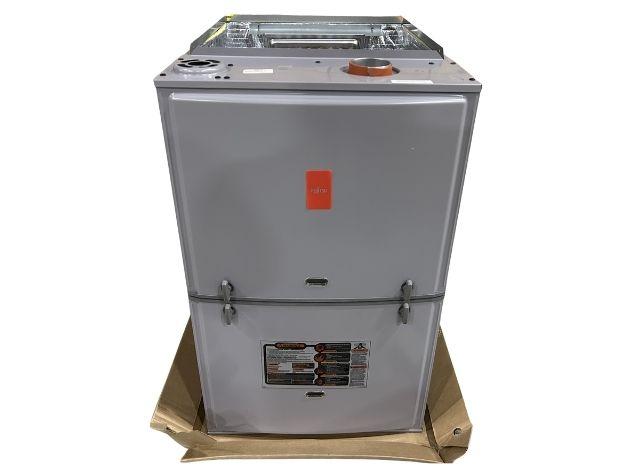

75,000 BTU upflow/horizontal gas furnace; Efficiency: 80, Volts: 115, Hertz: 60, Phase: 1, CFM: 1785, Stage: single, Speed: multi, Motor Type: ECM, BTU Input: 75,000, BTU Output: 61,000, Dimensions: 34"H x 21"W x 28-1/32"D, Weight: 140 lbs **LP Kit Is Not Included (model# RXGJ-FP15)** **Unit includes a manufacturer warranty through June of 2029. No registration required** Paired with:
2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:

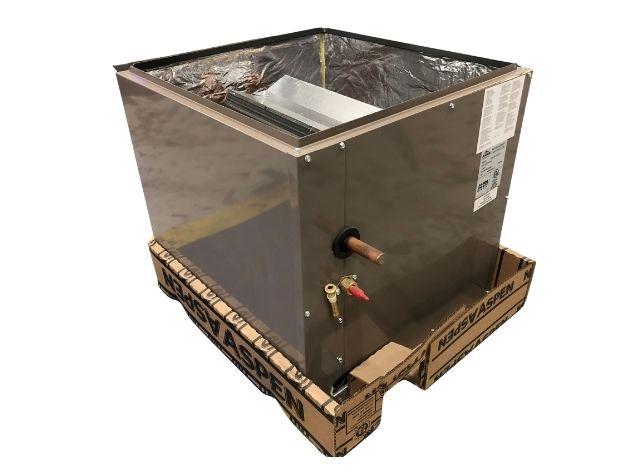

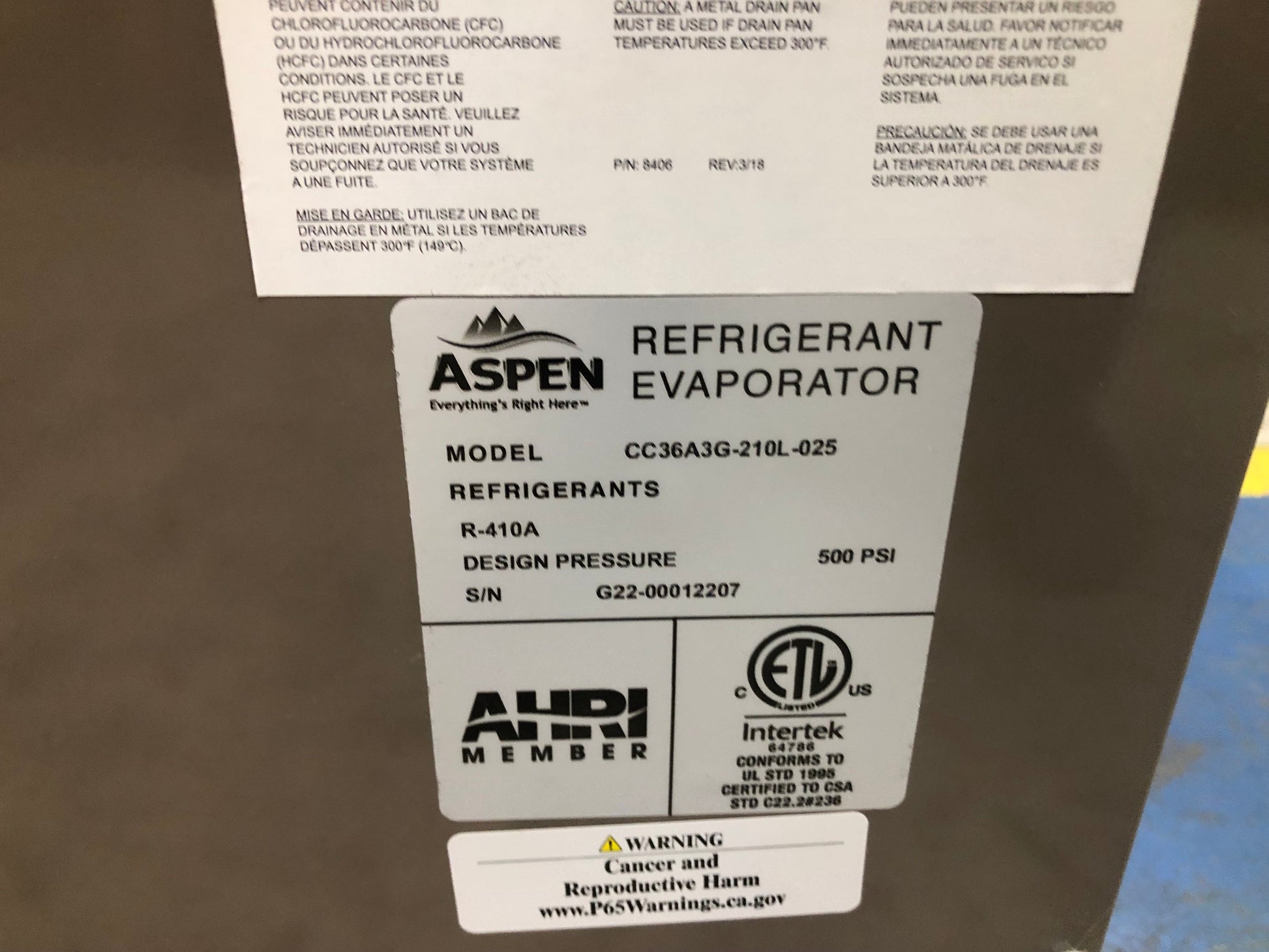

3 Ton AC/HP Cased A Coil; Airflow: Upflow/Downflow, Refrigerant: R-410A, Drain Pan: Plastic, Connection Size: 3/8" x 3/4", Metering Device: Piston, Dimensions: 20"H x 21"W x 21-1/2"D, Weight: 59 lbs Paired with:

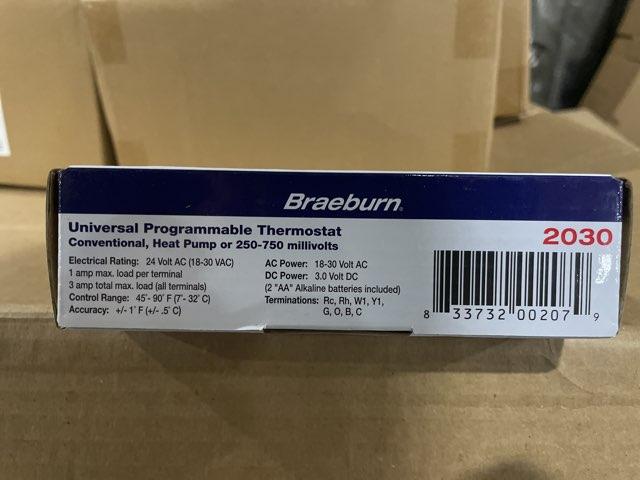

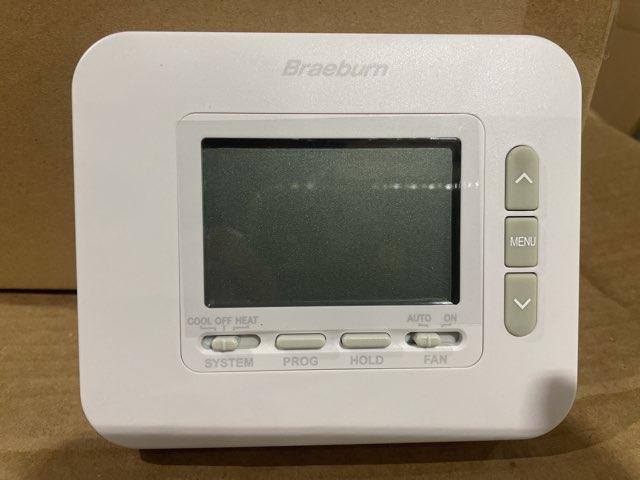

7-Day, 2-5 Day Programmable Push Button Adjustable Temperature Limits Thermostat, 1-Heat/1-Cool Conventional, 1-Heat/1-Cool Heat Pump, Temperature Range: 45F to 90F, Power: Hardwired, Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Gas, Oil, Electric, Milivolts, Features: Low Battery Indicator, Adjustable Temperature Limits, Dimensions: 4-1/4''H x 5-1/8''W x 1''D, Weight: 0.95 lbs
2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
3 Ton AC/HP Cased A Coil; Airflow: Upflow/Downflow, Refrigerant: R-410A, Drain Pan: Plastic, Connection Size: 3/8" x 3/4", Metering Device: Piston, Dimensions: 20"H x 21"W x 21-1/2"D, Weight: 59 lbs Paired with:
7-Day, 2-5 Day Programmable Push Button Adjustable Temperature Limits Thermostat, 1-Heat/1-Cool Conventional, 1-Heat/1-Cool Heat Pump, Temperature Range: 45F to 90F, Power: Hardwired, Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Gas, Oil, Electric, Milivolts, Features: Low Battery Indicator, Adjustable Temperature Limits, Dimensions: 4-1/4''H x 5-1/8''W x 1''D, Weight: 0.95 lbs
Product Details
Product Details
SCL # :M001253
Manufacturer Item # :FF75214CS80M/GSXN403010/CC36A3G-210L-025/2030
Alternate Part # :217893,215705,216472,222499
75,000 BTU upflow/horizontal gas furnace; Efficiency: 80, Volts: 115, Hertz: 60, Phase: 1, CFM: 1785, Stage: single, Speed: multi, Motor Type: ECM, BTU Input: 75,000, BTU Output: 61,000, Dimensions: 34"H x 21"W x 28-1/32"D, Weight: 140 lbs **LP Kit Is Not Included (model# RXGJ-FP15)** **Unit includes a manufacturer warranty through June of 2029. No registration required** Paired with:
2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
3 Ton AC/HP Cased A Coil; Airflow: Upflow/Downflow, Refrigerant: R-410A, Drain Pan: Plastic, Connection Size: 3/8" x 3/4", Metering Device: Piston, Dimensions: 20"H x 21"W x 21-1/2"D, Weight: 59 lbs Paired with:
7-Day, 2-5 Day Programmable Push Button Adjustable Temperature Limits Thermostat, 1-Heat/1-Cool Conventional, 1-Heat/1-Cool Heat Pump, Temperature Range: 45F to 90F, Power: Hardwired, Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Gas, Oil, Electric, Milivolts, Features: Low Battery Indicator, Adjustable Temperature Limits, Dimensions: 4-1/4''H x 5-1/8''W x 1''D, Weight: 0.95 lbs
2.5 ton split-system air conditioner; Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Department of Energy Guide SEER2: 14.3, Stage: single, Refrigerant: R410A, Connection Size: 3/8" x 7/8", Connection Type: sweat, Factory Charge: 4 lbs 15 oz, Dimensions: 39-1/2"H x 29"W x 29"D, Weight: 156 lbs ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
3 Ton AC/HP Cased A Coil; Airflow: Upflow/Downflow, Refrigerant: R-410A, Drain Pan: Plastic, Connection Size: 3/8" x 3/4", Metering Device: Piston, Dimensions: 20"H x 21"W x 21-1/2"D, Weight: 59 lbs Paired with:
7-Day, 2-5 Day Programmable Push Button Adjustable Temperature Limits Thermostat, 1-Heat/1-Cool Conventional, 1-Heat/1-Cool Heat Pump, Temperature Range: 45F to 90F, Power: Hardwired, Battery, Color: White, Applications: Air Conditioners, Heat Pumps, Gas, Oil, Electric, Milivolts, Features: Low Battery Indicator, Adjustable Temperature Limits, Dimensions: 4-1/4''H x 5-1/8''W x 1''D, Weight: 0.95 lbs
Specifications
Specifications
Cabinet Size:21
Efficiency:80%
Packaging:Manufacture packaging
Stage:1
System Controls:NON-COMMUNICATING
Type:GAS/PROPANE
