SCL # :219553
Manufacturer Item # :CP9C080B12MP13C

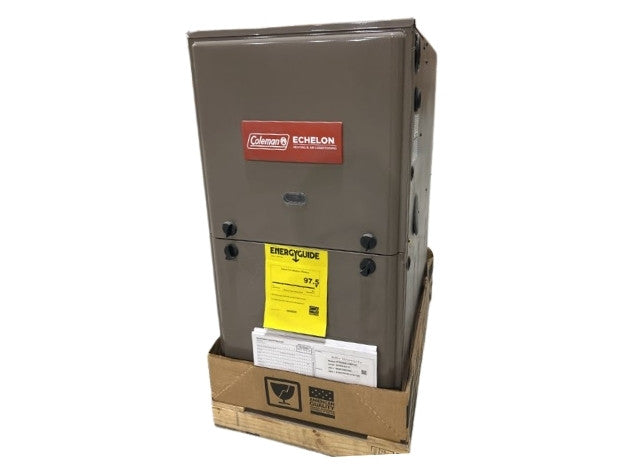

80,000 BTU Modulating Multiposition Communicating Compatible Gas Furnace, Efficiency: 97.5%, Volts:
115, Hertz: 60, Phase: 1, CFM: 1228, Stage: Three, Speed: Variable, Motor Type: ECM, BTU Input:
80,000, BTU Output: 77,000, Dimensions: 33''H X 17-1/2''W X 29-1/2''D, Weight: 119 lbs ***Propane Conversion Kit S1-1NP0681 (Not Included)***
see installation guide for steps to install out of communicating mode
115, Hertz: 60, Phase: 1, CFM: 1228, Stage: Three, Speed: Variable, Motor Type: ECM, BTU Input:
80,000, BTU Output: 77,000, Dimensions: 33''H X 17-1/2''W X 29-1/2''D, Weight: 119 lbs ***Propane Conversion Kit S1-1NP0681 (Not Included)***
see installation guide for steps to install out of communicating mode
Product Details
Product Details
SCL # :219553
Manufacturer Item # :CP9C080B12MP13C
80,000 BTU Modulating Multiposition Communicating Compatible Gas Furnace, Efficiency: 97.5%, Volts:
115, Hertz: 60, Phase: 1, CFM: 1228, Stage: Three, Speed: Variable, Motor Type: ECM, BTU Input:
80,000, BTU Output: 77,000, Dimensions: 33''H X 17-1/2''W X 29-1/2''D, Weight: 119 lbs ***Propane Conversion Kit S1-1NP0681 (Not Included)***
see installation guide for steps to install out of communicating mode
115, Hertz: 60, Phase: 1, CFM: 1228, Stage: Three, Speed: Variable, Motor Type: ECM, BTU Input:
80,000, BTU Output: 77,000, Dimensions: 33''H X 17-1/2''W X 29-1/2''D, Weight: 119 lbs ***Propane Conversion Kit S1-1NP0681 (Not Included)***
see installation guide for steps to install out of communicating mode
Specifications
Specifications
Cabinet Size:17.5
Circuit Phase:1
Circuit Voltage:115-120
Efficiency:95+%
Maximum Hertz:60
Packaging:Manufacture packaging
Stage:3
System Controls:NON-COMMUNICATING
Type:GAS/PROPANE
