SCL # :187420-DAMAGED
Manufacturer Item # :3AXF1-DAMAGED

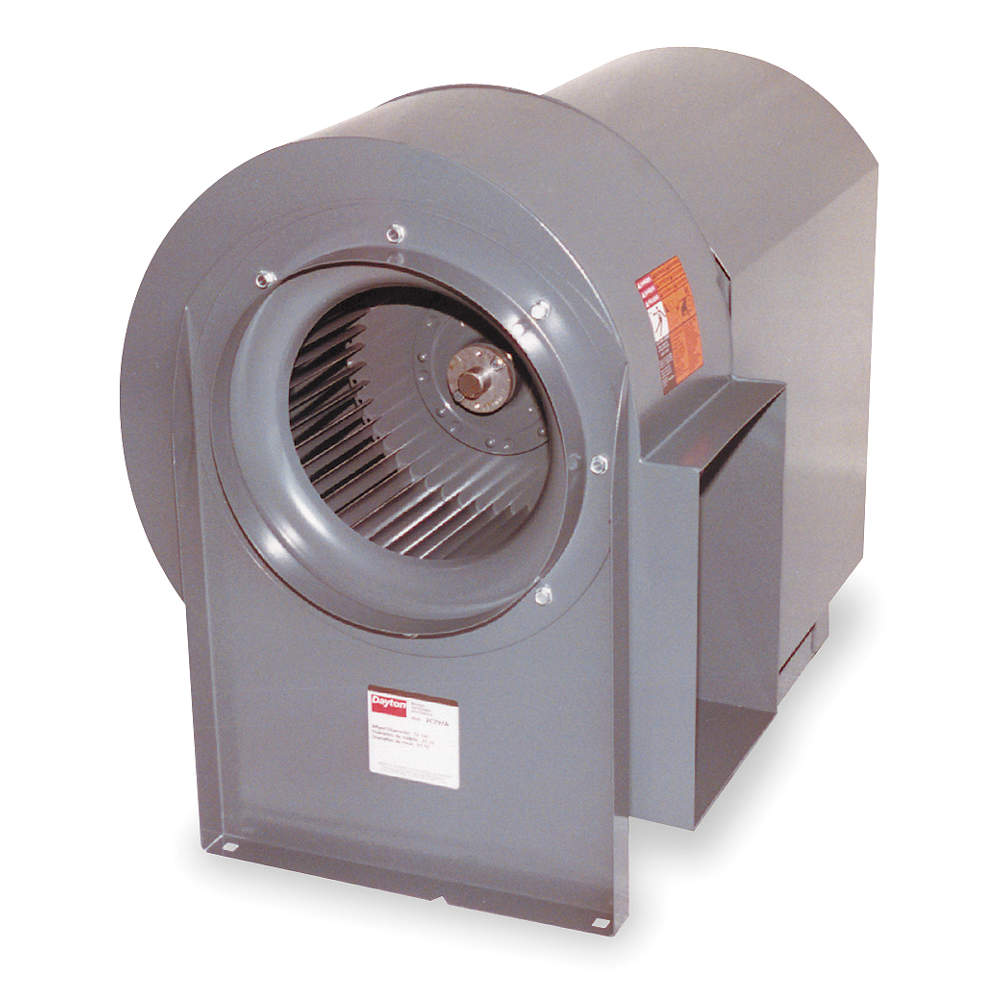

Item: Blower,Type: Less Drive Package,Wheel Dia. (In.): 20,Max. Inlet Temp. (Deg. F): 250,Max.
Ambient Temp. (F): 104,Motor HP Range: 3/4 To 5,Shaft Dia. (In.): 1-3/16,Height (In.):
40-1/4,Width (In.): 34-1/2,Depth (In.): 42-15/16,Inlet Dia. (In.): 21-1/2,Discharge Height (In.):
21-1/2,Discharge Width (In.): 15-7/8,Wheel Width (In.): 10-3/16,Rotation: CW,Bearing Type:
Ball,Wheel Material: Steel,Housing Material: Steel,Housing Finish: Gray Baked Polyester Epoxy,Includes: Weather Proof Drive Cover, Weight:255 Lbs, In Bulk, Made In USA
Minor Scratches to Sides of Unit
Ambient Temp. (F): 104,Motor HP Range: 3/4 To 5,Shaft Dia. (In.): 1-3/16,Height (In.):
40-1/4,Width (In.): 34-1/2,Depth (In.): 42-15/16,Inlet Dia. (In.): 21-1/2,Discharge Height (In.):
21-1/2,Discharge Width (In.): 15-7/8,Wheel Width (In.): 10-3/16,Rotation: CW,Bearing Type:
Ball,Wheel Material: Steel,Housing Material: Steel,Housing Finish: Gray Baked Polyester Epoxy,Includes: Weather Proof Drive Cover, Weight:255 Lbs, In Bulk, Made In USA
Minor Scratches to Sides of Unit
Product Details
Product Details
SCL # :187420-DAMAGED
Manufacturer Item # :3AXF1-DAMAGED
Item: Blower,Type: Less Drive Package,Wheel Dia. (In.): 20,Max. Inlet Temp. (Deg. F): 250,Max.
Ambient Temp. (F): 104,Motor HP Range: 3/4 To 5,Shaft Dia. (In.): 1-3/16,Height (In.):
40-1/4,Width (In.): 34-1/2,Depth (In.): 42-15/16,Inlet Dia. (In.): 21-1/2,Discharge Height (In.):
21-1/2,Discharge Width (In.): 15-7/8,Wheel Width (In.): 10-3/16,Rotation: CW,Bearing Type:
Ball,Wheel Material: Steel,Housing Material: Steel,Housing Finish: Gray Baked Polyester Epoxy,Includes: Weather Proof Drive Cover, Weight:255 Lbs, In Bulk, Made In USA
Minor Scratches to Sides of Unit
Ambient Temp. (F): 104,Motor HP Range: 3/4 To 5,Shaft Dia. (In.): 1-3/16,Height (In.):
40-1/4,Width (In.): 34-1/2,Depth (In.): 42-15/16,Inlet Dia. (In.): 21-1/2,Discharge Height (In.):
21-1/2,Discharge Width (In.): 15-7/8,Wheel Width (In.): 10-3/16,Rotation: CW,Bearing Type:
Ball,Wheel Material: Steel,Housing Material: Steel,Housing Finish: Gray Baked Polyester Epoxy,Includes: Weather Proof Drive Cover, Weight:255 Lbs, In Bulk, Made In USA
Minor Scratches to Sides of Unit
Specifications
Specifications
Cabinet Size:40
Packaging:No Manufacture Packaging
