SCL # :193812-W1M5131476
Manufacturer Item # :YHJD36S44S4A-W1M5131476
Alternate Part # :YHJD36S44S4

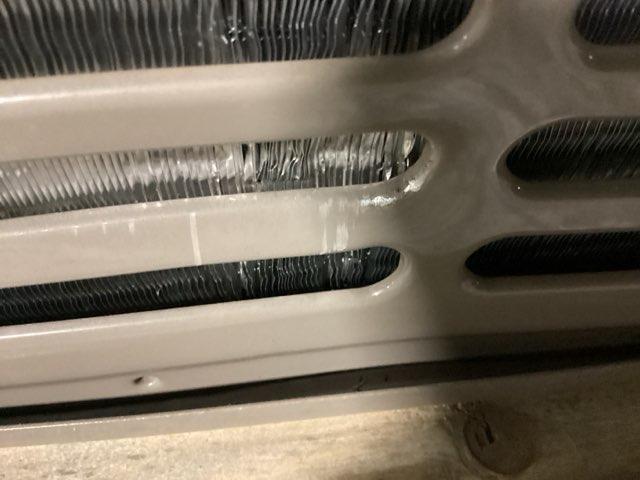

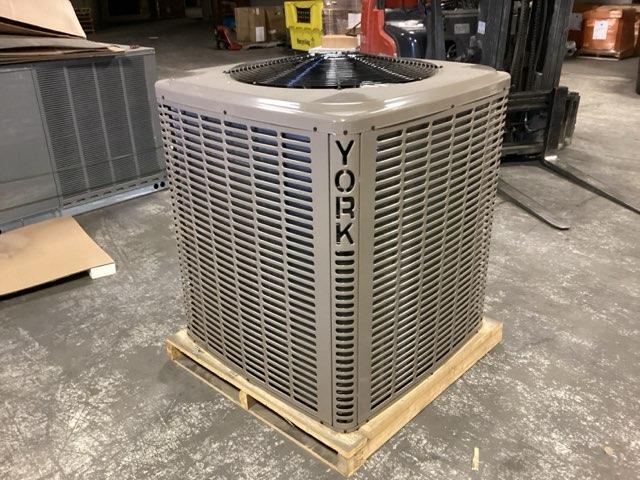

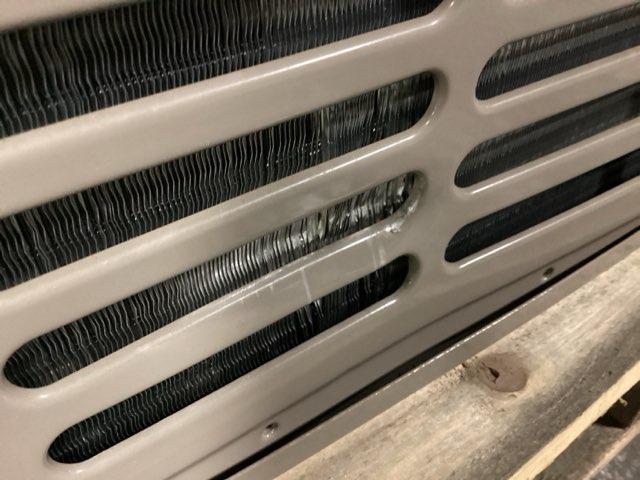

3 ton LX series split-system heat pump; Volts: 460, Hertz: 60, Phase: 3, SEER: 13, Refrigerant: R-410A, Factory Charge: 10 lbs, Design Pressure High/Low: 448 PSIG/236 PSIG, Type: air source, Connection Size: 3/8" x 3/4", Connection Type: sweat, Dims: 40-1/4"H x 34"W x 34"D, Weight: 200 lbs, **SMALL DENT ON LOWER BACK PANEL. DID GET INTO THE COIL A LITTLE**
Product Details
Product Details
SCL # :193812-W1M5131476
Manufacturer Item # :YHJD36S44S4A-W1M5131476
Alternate Part # :YHJD36S44S4
3 ton LX series split-system heat pump; Volts: 460, Hertz: 60, Phase: 3, SEER: 13, Refrigerant: R-410A, Factory Charge: 10 lbs, Design Pressure High/Low: 448 PSIG/236 PSIG, Type: air source, Connection Size: 3/8" x 3/4", Connection Type: sweat, Dims: 40-1/4"H x 34"W x 34"D, Weight: 200 lbs, **SMALL DENT ON LOWER BACK PANEL. DID GET INTO THE COIL A LITTLE**
Specifications
Specifications
Cabinet Size:40
Capacity:3
Circuit Phase:3
Circuit Voltage:460
Maximum Hertz:60
Packaging:No Manufacture Packaging
Stage:1
System Controls:NON-COMMUNICATING
