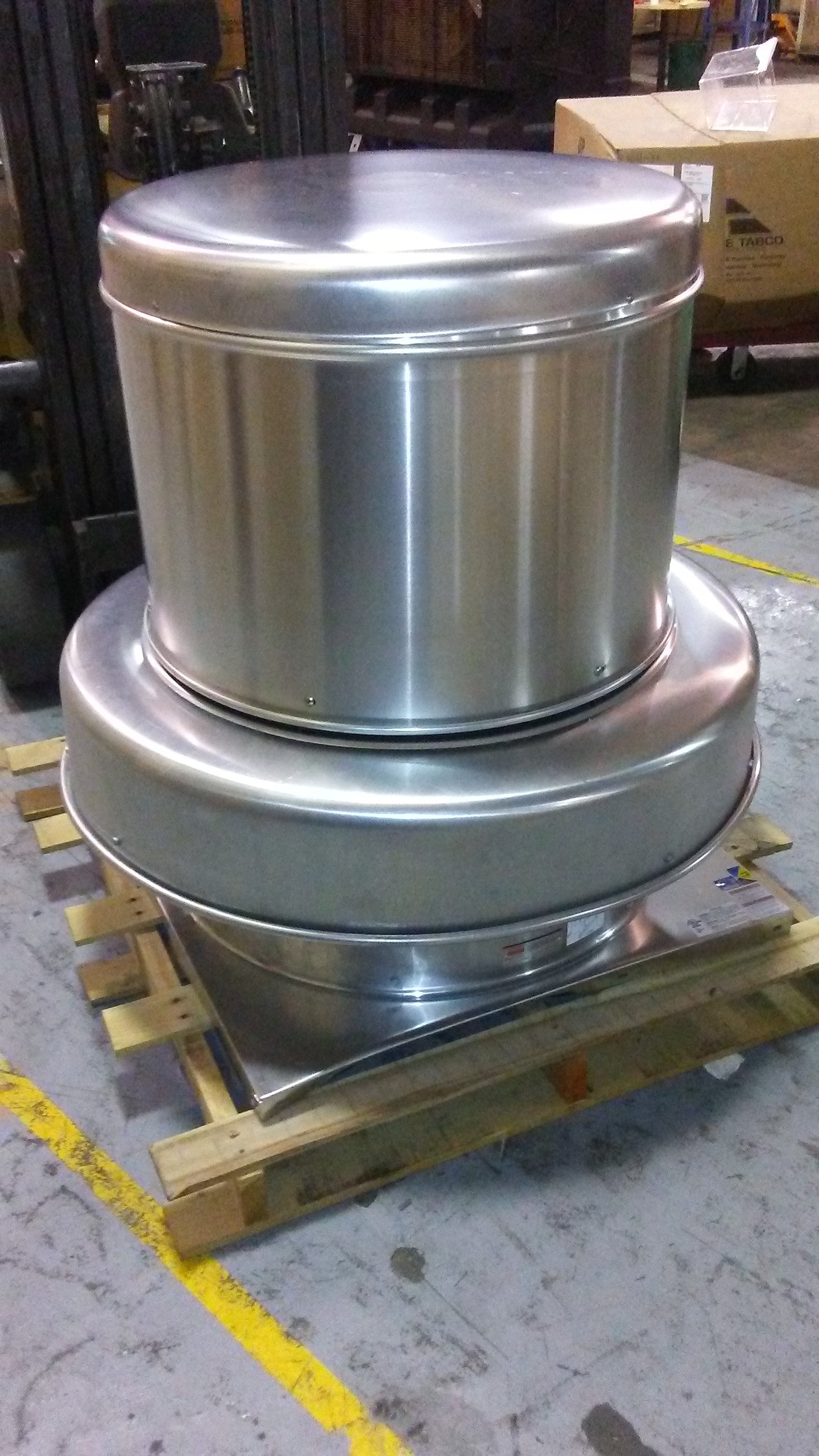

Item: Downblast Ventilator Without Motor And Drive, Drive Type: Belt, Wheel Dia.: 24-1/2", CFM Range: 3799 to 7485 0.0" SP, RPM Range: 500 to 985, Motor HP Range: 1/4 to 2, Base Width: 34", Mounting Location: Roof ,Base Length: 34", Base Height: 1-3/4", Overall Dia:. 38-3/8", Overall Height :38-3/8", Shaft Dia. Wheel End ;1", Shaft Dia. Sheave End: 1" ,Bearing Type: Regreasable Pillow Block, Max. Inlet Temp:. 180 Degrees, Housing Material: Spun Aluminum, Wheel Material:
Aluminum,Wheel Type: Backward Inclined Centrifugal, Origin: USA, {Damage To The Bottom)
