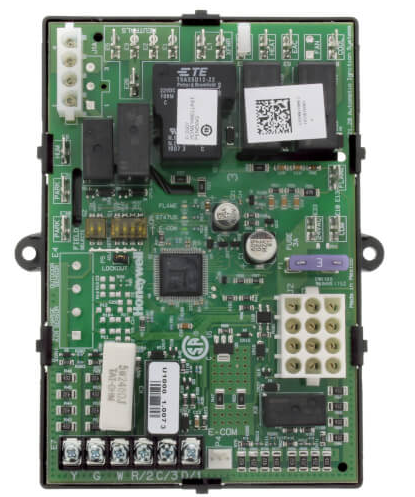

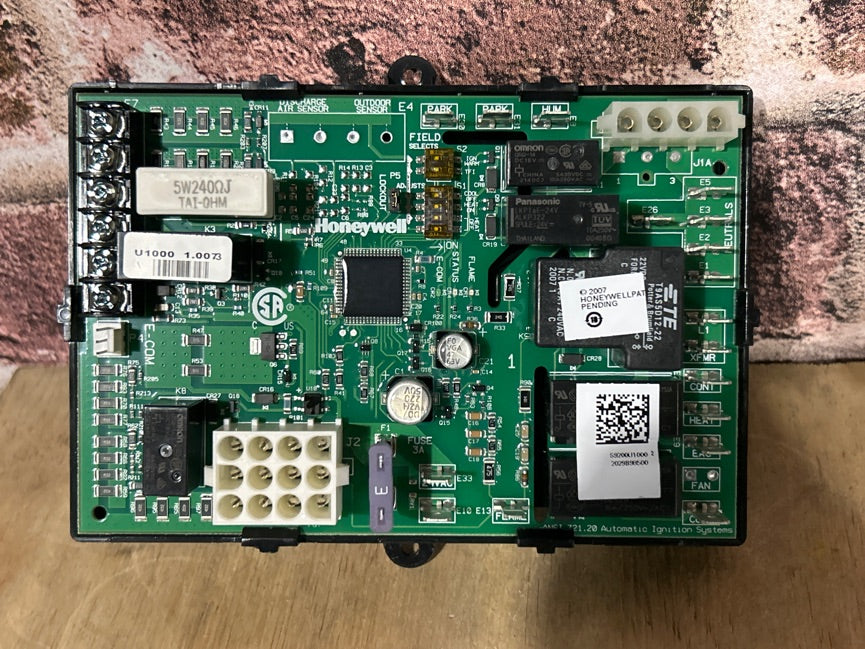

UNIVERSAL INTEGRATED FURNACE CONTROL

UNIVERSAL INTEGRATED FURNACE CONTROL, VOLTS:120, HERTZ:60, PHASE:1, LOW VOLTAGE:24V, HERTZ:60, PHASE:1, CURRENT DRAW:0.5 AMPS INPUT CURRENT AT 24 VAC, PLUS VALVE LOAD AT 24 VAC PLUS COOLING CONTRACTOR, THERMOSTAT ANTICIPATOR SETTING: (STAGE 1 ONLY) 100mA, PRESURGE:30 SECONDS, HSI WARM UP:17/27 OR 30/30SECONDS (1st/NEXT TRIAL)DEPENDING ON DIP SWITCH S2 SETTING, POST SURGE: 15 SECONDS, INTER-TRIAL PURGE:60 SECONDS, AUTO RESTART DELAY:60 MINUTES (AFTER SOFT LOCKOUT), IGNITION TRIALS:3;2 RETRIES IF FLAME IS NOT SENSED ON THE FIRST TRIAL, DIMS:1 1/2"H X 4 1/4"W X 4 1/4"D, WEIGHT:1 LB 6OZ, IN MFG BOX, MADE IN USA.
