Número de serie:219901
Número de artículo del fabricante:JCH060AGRP0CP2C

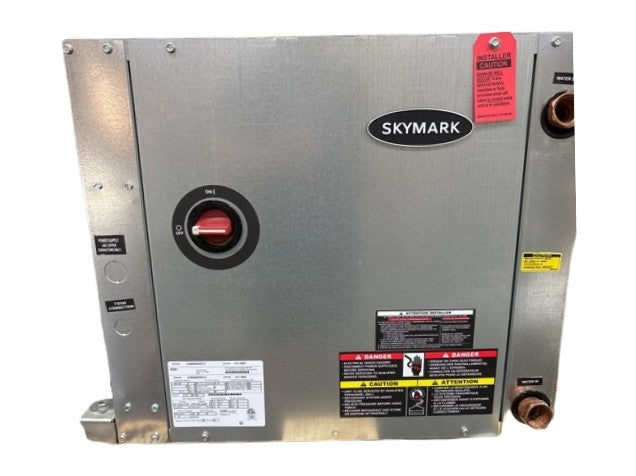

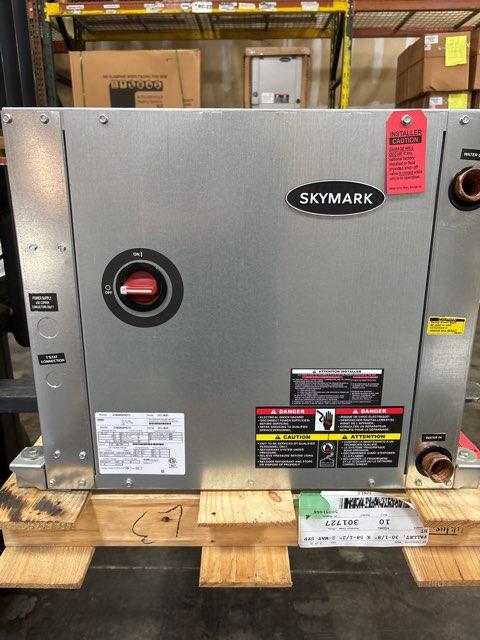

5 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration:
Horizontal, Return Air Option: Left Return, EER: 20.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: 82 oz, Water Loop - Cooling BTU: 59,500/Heating BTU:
72,000, Ground Water - Cooling BTU: 66,500/Heating BTU: 61,000, Ground Loop - Cooling BTU:
61,500/Heating BTU: 49,200, Connection Size: 1", Dimensions: 21''H x 24-1/10''W x 54-1/10''D, Weight: 278 lbs
Horizontal, Return Air Option: Left Return, EER: 20.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: 82 oz, Water Loop - Cooling BTU: 59,500/Heating BTU:
72,000, Ground Water - Cooling BTU: 66,500/Heating BTU: 61,000, Ground Loop - Cooling BTU:
61,500/Heating BTU: 49,200, Connection Size: 1", Dimensions: 21''H x 24-1/10''W x 54-1/10''D, Weight: 278 lbs
Product Details
Product Details
Número de serie:219901
Número de artículo del fabricante:JCH060AGRP0CP2C
5 Ton Two Stage Geothermal Heat Pump, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, Configuration:
Horizontal, Return Air Option: Left Return, EER: 20.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: 82 oz, Water Loop - Cooling BTU: 59,500/Heating BTU:
72,000, Ground Water - Cooling BTU: 66,500/Heating BTU: 61,000, Ground Loop - Cooling BTU:
61,500/Heating BTU: 49,200, Connection Size: 1", Dimensions: 21''H x 24-1/10''W x 54-1/10''D, Weight: 278 lbs
Horizontal, Return Air Option: Left Return, EER: 20.5, Stage: Two, Motor Type: ECM, Refrigerant:
R410A, Metering Device: TXV, Factory Charge: 82 oz, Water Loop - Cooling BTU: 59,500/Heating BTU:
72,000, Ground Water - Cooling BTU: 66,500/Heating BTU: 61,000, Ground Loop - Cooling BTU:
61,500/Heating BTU: 49,200, Connection Size: 1", Dimensions: 21''H x 24-1/10''W x 54-1/10''D, Weight: 278 lbs
Specifications
Specifications
Tamaño del gabinete:24.1
Capacidad:5
Fase del circuito:1
Voltaje del circuito:208-230
Hertz máximo:60
Embalaje:Manufacture packaging
Escenario:2
