75,000 BTU upflow/horizontal gas furnace; Efficiency: 80, Volts: 115, Hertz: 60, Phase: 1, CFM: 1785, Stage: single, Speed: multi, Motor Type: ECM, BTU Input: 75,000, BTU Output: 61,000, Dimensions: 34"H x 21"W x 28-1/32"D, Weight: 140 lbs **LP Kit Is Not Included (model# RXGJ-FP15)** **Unit includes a manufacturer warranty through June of 2029. No registration required** Paired with:
2 Ton Two Stage Split-System Communicating Air Conditioner, Circuit Voltage: 208-230, Hertz: 60, Phase: 1, SEER2: 17- In Communicating Mode, Stage: Two, Refrigerant: R410A, Connection Size: 3/8"X3/4", Connection Type: Sweat, Factory Charge: 105 oz, Type: Air, Dimensions: 39-1/2''H x 35-1/2''W x 35-1/2''D, Weight: 214 lbs **Compatible With Comfortbridge Technology Units** ***Unit includes a Manufacture Warranty, register your unit with the Manufacturer for details*** Paired with:
7 Pin Connector, Used for Legacy Wiring of Communicating Condensers. Required When The Outdoor Unit Is Paired With Non-Communicating Indoor Units. Dimensions: 1/2" H x 1-1/2" W x 2" D, Weight: 0.02 lbs Paired with:

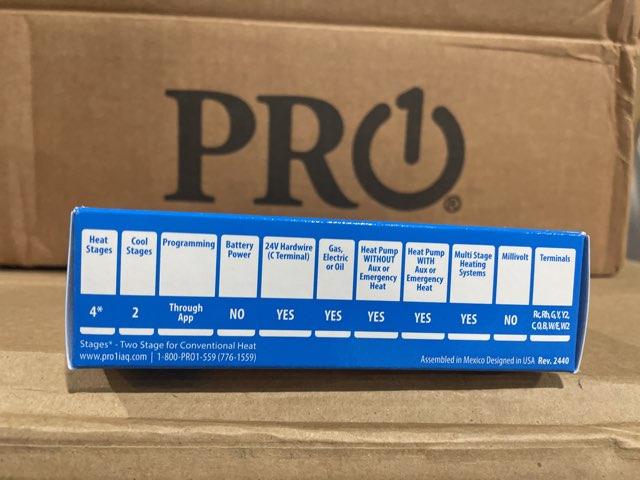

Programmable Through App Multi-Stage Push Button Wall Mount or Junction Box Thermostat, 2-Heat/2-Cool Conventional, 4-Heat/2-Cool Heat Pump, Temperature Range: 44F to 90F, Power: Hardwired, Color: White, Applications: Air Conditioners, Heat Pumps, Air Handlers, Furnaces, PTAC, Features: Adjustable Heating & Cooling Temperature Swing, Wall Mount or Junction Box, Voltage: 24, Dimensions: 4-2/5''H x 4-7/10''W x 1-1/10''D, Weight: 0.75 lbs **Optional Universal Wall Plate: T119, Not Included**
