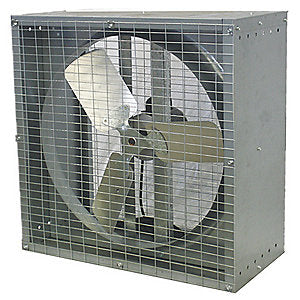

24" DIA 115/230V ASSEMBLED DIRECT DRIVE AGRICULTURAL EXHAUST FAN, 1/2HP

ITEM: AGRICULTURAL EXHAUST FAN, TYPE: ASSEMBLED DIRECT DRIVE ,PROPELLER DIA. (IN.): 24, CFM @ 0.000-IN. SP: 5618, CFM @ 0.050-IN. SP: 5192, CFM @ 0.100-IN. SP: 4845, CFM @ 0.150-IN. SP: 4505, CFM/WATT @ 0.000-IN. SP: 11.3, CFM/WATT @ 0.050-IN. SP: 10.2, CFM/WATT @ 0.100-IN. SP: 9.3, CFM/WATT @ 0.150-IN. SP: 8.4, FAN RPM: 1143, VOLTAGE: 115/230, HZ: 60, PHASE: 1, FULL LOAD AMPS: 5.6/2.8, HP: ½, MOTOR RPM: 1100 ,MOTOR TYPE: PERMANENT SPLIT CAPACITOR,MOTOR: ENCLOSURE TEAO ,MOTOR INSULATION: CLASS B ,HEIGHT (IN.): 29-5/16, WIDTH (IN.): 29-5/16, MAX. DEPTH (IN.): 12.5 ,OPENING REQUIRED H (IN.): 30, OPENING REQUIRED W (IN.): 30, VENTURI CLEARANCE DIA. (IN.): 5/16, VENTURI DEPTH (IN.): 3-1/2, MOUNTING LOCATION: VERTICAL ,MAX. AMBIENT TEMP. (F): 104, SHAFT DIA. (IN.):5/8 ,BEARING TYPE: SEALED BALL, NUMBER OF BLADES: 3,PROPELLER MATERIAL: GALVANIZED STEEL ,FRAME MATERIAL: GALVANIZED STEEL, FRAME FINISH: GALVANIZED STEEL, MESH SIZE: 1 X 2, AGENCY COMPLIANCE MOTOR IS UL RECOGNIZED FOR USA & CANADA. ,INCLUDES :1 X 2 MESH SCREEN, MADE IN USA.
